SONDEK LP12

DATA SHEET	Production:	Current
	Hire stock:	No
	New stock:	No
	Used stock:	No

Linn Sondek state-of-the-art hi-fi turntable

First introduced: 1972
Belt drive transcription turntable platter
Speed: 33.3 (45 rpm with optional adaptor)
Choice of tone-arm (shown here with Syrinx PU2)
Choice of cartridge
Detachable perspex lid
Anti-vibration sprung floating sub-chassis
Speed accuracy:
      Valhalla / Lingo: 0.03%
      Basik: 0.1% (mains Tolerance)
Power requirements:
      Valhalla / Basik: 90-132, 198-264V AC
      Lingo: 100/120/220/240V AC
Power consumption: 13W (max.)
Dimensions: 445 (w) x 140 (h) x 356mm (d)
Weight: 3.75kg

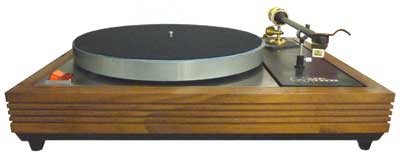

Linn Sondek LP12 transcription turntable

The reference transcription turntable for optimum reproduction of LP records - over 30 years of world leadership. Available with three different standards of power supply. Patented, low-noise, single-point bearing to eliminate noise and optimise information retrieval.

High mass, perfectly balanced, belt-driven platter to maintain speed stability

Solid wood plinth, stainless steel chassis, suspended sub-chassis and stable arm platform to provide freedom from vibration and acoustic feedback, and reliable, consistent performance.

Upgradeable from Basik version in steps to Lingo version for ultra-precise motor control and the finest musical detail. (The Lingo drives the LP12 motor with two low distortion sine waves separated by 90 degrees from two high voltage amplifiers. The sine waves are derived from a low noise crystal oscillator. A unique circuit monitors the motor and during start up drives the motor hard until it stabilises at the correct speed.

How to replace a drive belt		Replacement drive belts (BELT29) available for Ł8.50 + 1.50 (UK p&p) = Ł10.00
How to replace a drive belt		Download our Order Form or order by phone or online from our secure gbaudioshop. Terms & Conditions of sale.
