DATA
SHEET

Production:  Obsolete
Hire stock: No
New stock: No
Used stock: No

A highly prized transcription turntable, dating back to the late 1970s, the TD126 Mk2.

Choice of three speeds: 33 or 45 or 78rpm
TP16 Mk2 straight tone-arm with removable TP26 headtube. Manual or auto end lift.
Motorised tonearm lift/lower.
Sprung, floating sub-chassis isolation.
Detachable perspex lid.

Anti-skate: Frictionless magnetic field
Motor: Electronically controlled two-phase AC synchronous motor
Power requirements: 220V AC (50Hz)
Or 117V AC (60Hz)
Power consumption: 9W max (@220V)
Dimensions: 500 (w) x 170 (h) x 390mm (d)
Weight: 13kg

The TD126 Mk2 was typically sold with a Shure M75, Ortofon VMS20, ADC, Audio-Technica or similar 1/2" standard fitting cartridge, although any standard 1/2" bolt-on cartridge will work. Compatible replacement styli are available for most cartridges.

Variations:
TD126 Mk2
: Without tonearm
TD126 Mk2: With TP16 Mk2 tonearm.


Thorens belt drive transcription hi-fi turntable

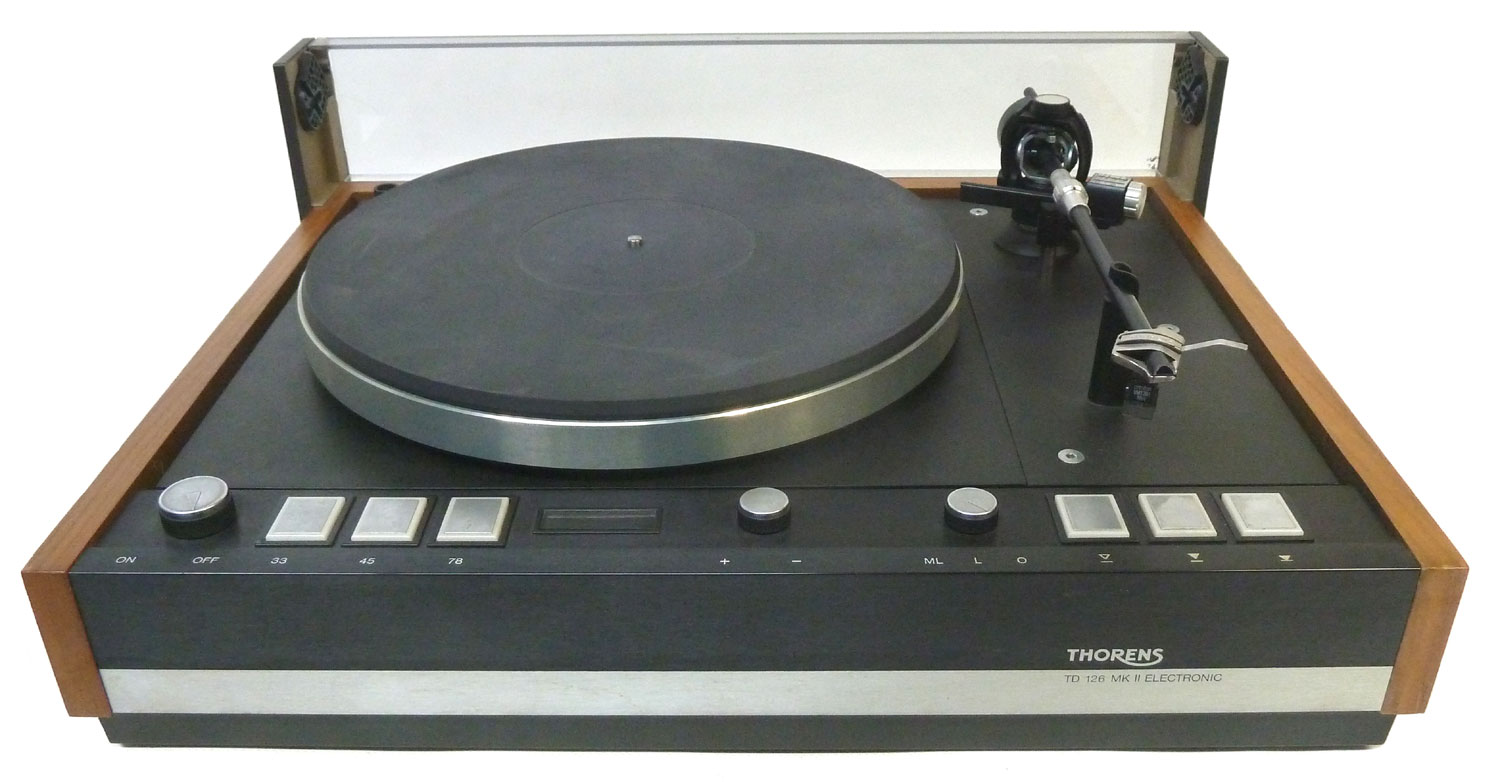

Thorens TD126 Mk2 belt drive transcription hi-fi turntable

Turntable Class by GB Audio - YouTube service tutorials for the TD126 Mk2 and other decks.

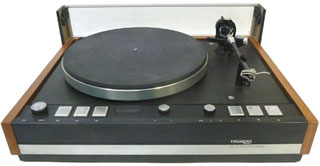

Thorens TD126 Mk2 service & set-up introduction
1. Introduction to service and set up the TD126 Mk2

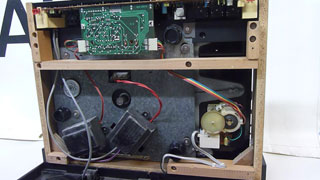

Thorens TD126 Mk2 where are the suspension springs and how to replace the drive belt for the tonearm lifting motor and how to remove the front panel to access the circuit board.
2. How to replace the drive belt for the tonearm lifting motor

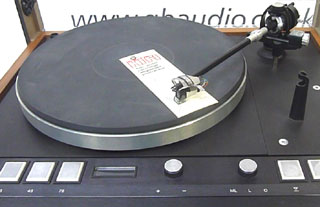

Thorens TD162 Mk2 set up the tonearm, cartridge, alignment, tracking weight and anti-skate
3. How to setup the cartridge alignment & tracking weight


Turntable replacement neoprene rubber belt How to replace a drive belt

Please let us know if you find these tutorials useful and support us by subscribing for free to the GB Audio channel.

Replacement drive belts (BELT25) available for £9.50
