JL-A20

DATA SHEET	Production:	Obsolete
	Hire stock:	No
	New stock:	No
	Used stock:	Yes

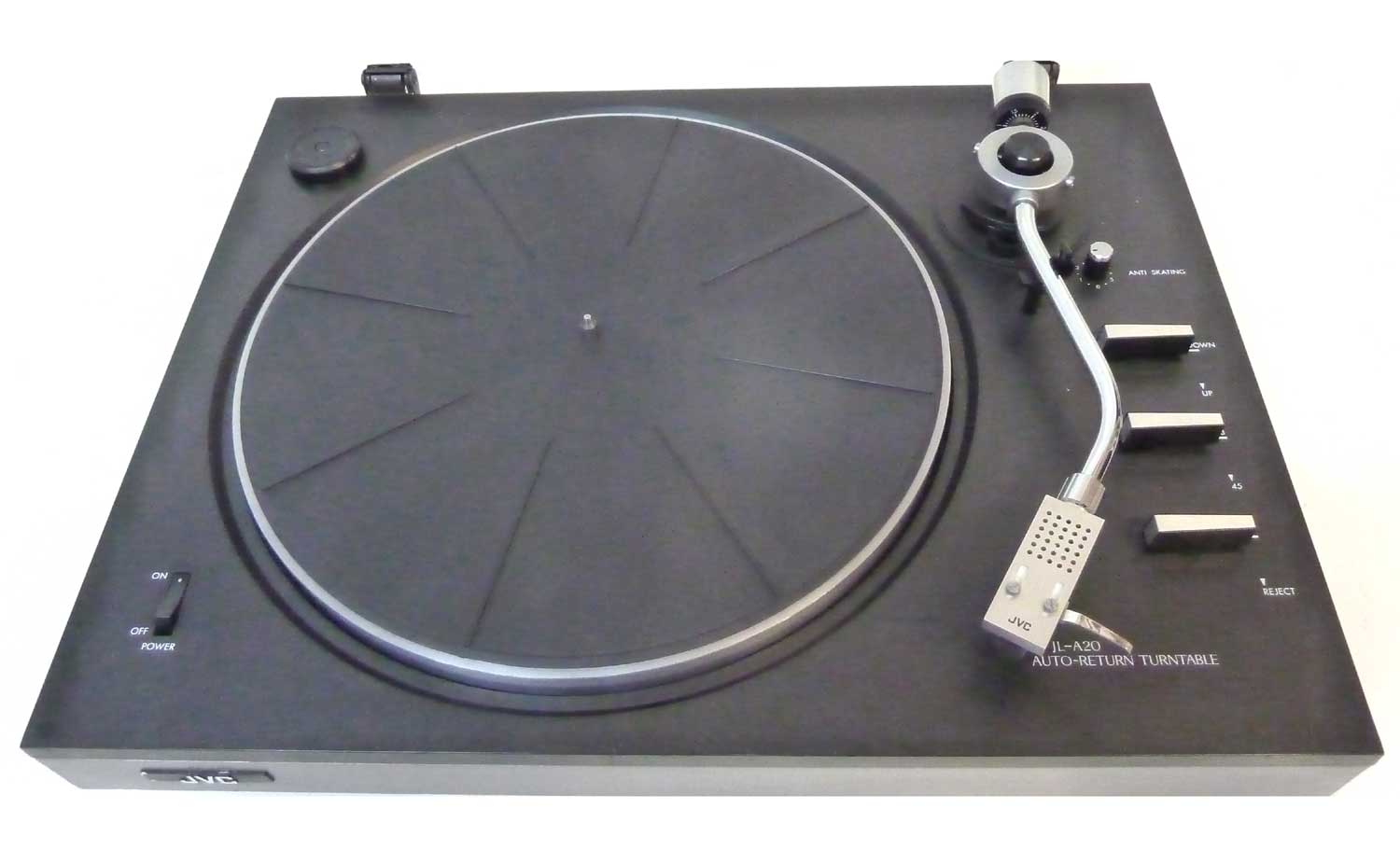

A popular record deck, dating back to the late 1970s, the JL-A20 represented a simple, sturdy, stylish workhorse.

Choice of two speeds: 33 or 45 rpm
Auto-return action S shaped tone-arm
Detachable perspex lid
Standard screw-on headshell
Motor: 4 pole syncromotor
Wow & Flutter: 0.06%
Rumble: 63dB
Power requirements: 240V AC (50Hz)
Power consumption: 13W (max.)
Dimensions: 440 (w) x 144 (h) x 380mm (d)
Weight: 4.9kg

The JL-A20 was typically sold with a JVC Z-1S cartridge or often changed for a Shure M75ED or Ortofon FF15 or Audio-Technica cartridge, although any standard 1/2" bolt-on cartridge will work on the JL-A20. Compatible replacement styli are available for most cartridges.

JVC belt drive auto-return hi-fi turntable

Turntable Class by GB Audio - YouTube service tutorials for JVC and similar decks. Please let us know if you find these tutorials useful and subscribe for free to the GB Audio channel.

How to replace the drive belt	How to set the tracking weight
How to align the catridge

How to replace a drive belt		Replacement drive belts (BELT36) available for Ł8.50 + 1.50 (UK p&p) = Ł10.00
How to replace a drive belt		Download our Order Form or order by phone or online from our secure gbaudioshop. Terms & Conditions of sale.
