DM101 |
|
DATA
SHEET |
Production: |
Obsolete |
|
Hire stock: |
No |
|
New stock: |
No |
|
Used stock: |
No |
|
An interesting
record deck, dating back to 1981 - 1985, the early version was a two speed manual changeover, the second version
added a central support spring (known as Logic Mass Centre System) and the
third version with electronic speed selection.
A worthy contender
against the Linn LP12, Ariston RD11 and other
top end transcription turntables.
Specifications:
Drive: belt
Motor: 24 pole synchronous
Speeds: 33.33 and 45rpm electronically switched
Wow and flutter: <0.08%
Rumble: -77dB
Dimensions: 480 x 380 x 150mm
Weight: 13kg
Finish: hard lacquer, available in black or brown The
Syrinx PU3 tone-arm takes a standard 1/2" bolt-on cartridge.
|
Logic
belt drive transcription hi-fi turntable

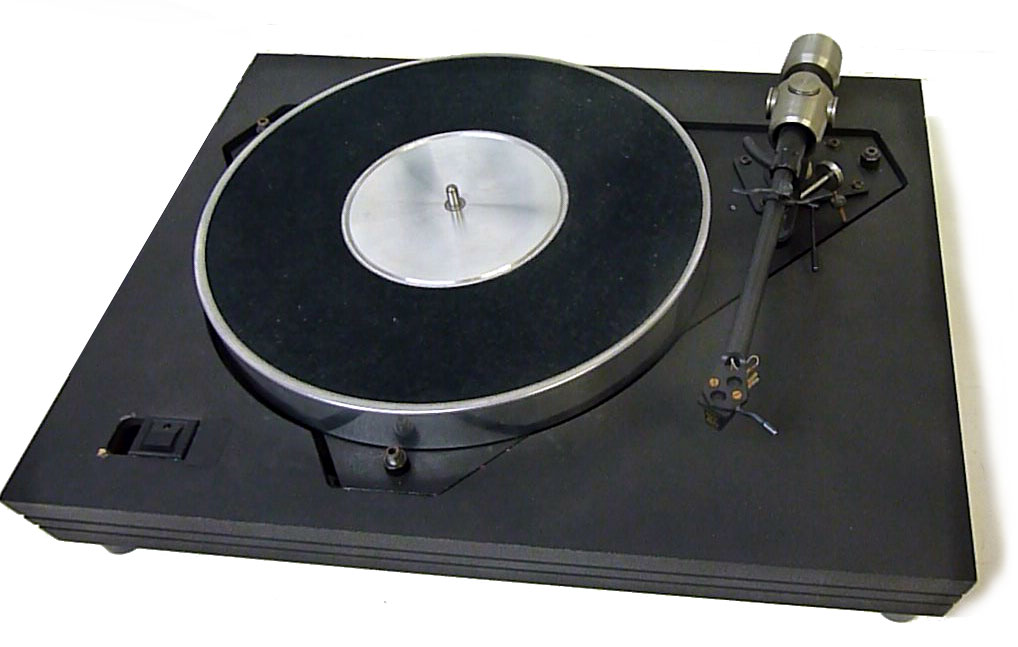

The Logic DM 101 is a belt-driven, sprung
chassis turntable with AC synchronous motor. From 1983 onwards the DM101 was
fitted with an improved electronic power supply with two-speed switching.
Early versions included a Logic Datum tone-arm.
Later versions were arm-less.
Drive is by a synchronous
motor via a precision ground, flat section belt. The platter is a precision
machined item in two-part form, the main platter having a high inertia
value.
The main bearing has a die-cast aluminium housing supporting two PTFE bushes
together with a carbide thrust pad.
Thrust is taken by a steel
ball concentrically located in the end of the ground and diamond lapped
spindle.
The 24 pole motor is mounted directly to the plinth on a 5mm thick steel
plate. Manufactured in solid 8mm thick aluminium, the chassis provides a
rigid support between the arm mounting and the platter.
The DM101 chassis/platter combination is
suspended from the plinth by a unique system known as Logic Mass Centre
System.
|
Turntable Class by GB Audio -
YouTube service
tutorials for the DM101.
Please let us know if you find these tutorials useful and
support us by subscribing for free to
the GB Audio channel.

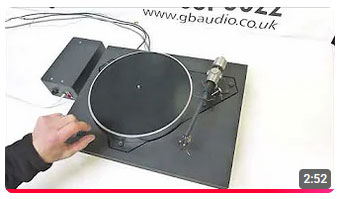

1. Introduction to the DM101 and parts

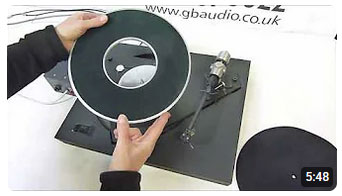

2. Platter, motor, chassis, drive belt, transit screws, springs, bushes.

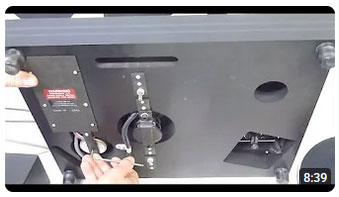

3. underneath the plinth, cable dressing, main spring mount, motor

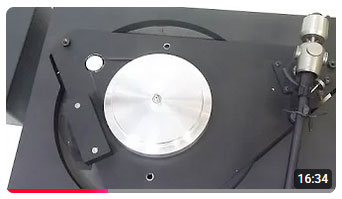

4. Springs, bushes, bearing, drive belt, chassis height & level

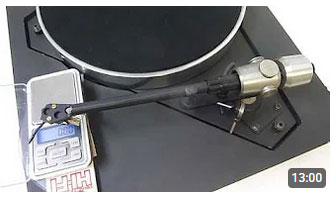

4. Syrinx PU3 tonearm set up the tracking weight, azimuth, anti-skate bias
How to
replace a
drive belt
Please let us know if you find
these tutorials useful and support us by subscribing for free to the
GB Audio channel.
Replacement drive belts (BELT23) available
for £9.50
