DATA
SHEET

 Production:  Obsolete
Hire stock: No
New stock: No
Used stock: No

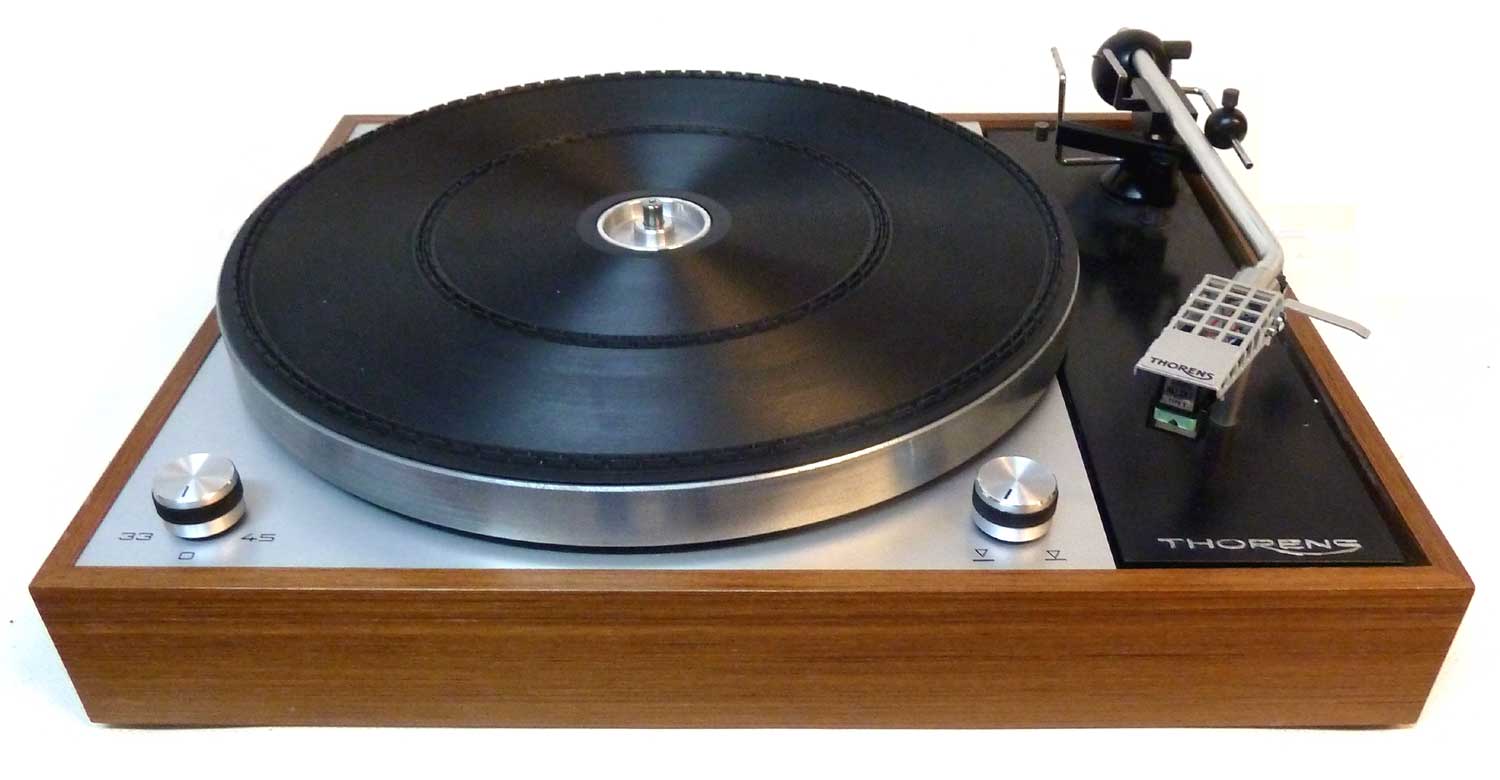

A popular record deck, dating back to the late 1970s, the TD150 Mk2AB was the forerunner for the Linn LP12, Ariston RD11 and other top end transcription turntables.

Choice of two speeds: 33 or 45 rpm
TP13A manual J shaped tone-arm
Detachable perspex lid
Thorens specific screw-on headshell
Motor: AC motor
Wow & Flutter:
Rumble:
Power requirements: 240V AC (50Hz)
(US / Canada version: 120V AC 60Hz)
Power consumption: 13W (max.)
Dimensions: 440 (w) x 144 (h) x 380mm (d)
Weight: 4.9kg

The TD150 Mk2AB was typically sold with a Shure M75, Audio-Technica, Ortofon or similar 1/2" standard fitting cartridge, although any standard 1/2" bolt-on cartridge will work. Compatible replacement styli are available for most cartridges.

Variations:
TD150 Mk2: Without tonearm & without base
TD150 Mk2A: With TP13A tonearm & without base.
TD150 Mk2B: Without tonearm & with base.


 Thorens belt drive transcription hi-fi turntable

Thorens TD150 Mk2AB belt drive transcription hi-fi turntable
Turntable Class by GB Audio - YouTube service tutorials for the TD150 Mk2 and similar decks.

Please let us know if you find these tutorials useful and support us by subscribing for free to the GB Audio channel.

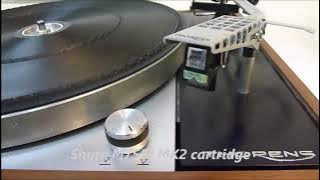

Thorens TD150 Mk2 service & set-up introduction
Introduction to service and set up the TD150 Mk2

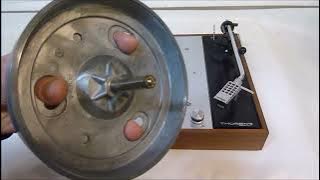

Thorens TD150 Mk2 how to replace the belt and service the main bearing and motor
1. How to replace the belt and adjust the top deck parameters

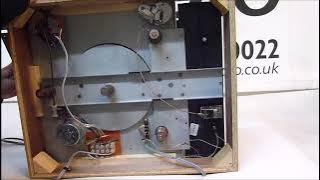

Thorens TD150 Mk2 how to set up the suspension and internal wiring
2. How to set up the suspension and internal wiring

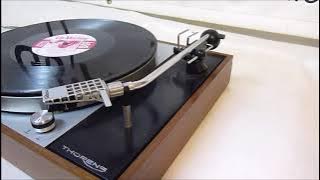

Thorens TD150 Mk2 set up the tonearm, cartridge, alignment, tracking weight
3. How to setup the tonearm & cartridge

Turntable replacement neoprene rubber belt How to replace a drive belt

Please let us know if you find these tutorials useful and support us by subscribing for free to the GB Audio channel.

Replacement drive belts (BELT27) available for £9.50
