"Hi, how do you get these desks apart? Looks like you have to drill out all the rivets to get the top plate off" P. Lex (04/04/2024)
Reply: Regarding dis-assembly of your mixer. The shells of the XLR connectors stay on the steel top plate, they do NOT need to be drilled out. You will see there is a small fourth hole above the centre hole which contains a locking cam. With a fine 2mm screwdriver give all the cams a quarter turn anti-clockwise and the central connectors will release. They will probably need to be pushed through the shells but this saves a lot of time and mess de-soldering the XLRs. The jack line and insert connectors are not locked to the top plate. The faders are screwed through the top plate and there are a few other obvious screws through the top plate which need to be removed.

"Hello there, You�re page is very informative on the Seck mixers. I�m running a model 122 with the original PSU and am in the USA. Everything seems to work fine on the mixer, but only the yellow light on the PSU is lit, not the green one. The red phantom power light on that switch works fine as well. Any idea if something is wrong? Or maybe that green light is just burnt out? Thanks for any advice!" Howie (29/03/2020)
Reply: If the PSU is still powering the mixer properly, then the �24v supply rails must be OK. The yellow and green LEDs show the �15v rails which are only required on the 8 bus consoles (12.8.2 or 18.8.2). They are not used, not even connected, in the 12.2 console. The +15v rail of the PSU may be faulty or the LED may possibly be burnt out but the most likely cause is that one of the LED legs has broken off the printed circuit board (PCB) and may just need soldering back on. You can confirm if each of the five rails are OK by probing the 6 pin DC connector plug with a DC voltmeter. If you want to investigate it further, the schematic and pin-out for the PSU5 is at http://www.gbaudio.co.uk/data/seckpsu.htm Reply: "Thanks so much for the reply! You were right on the money, I probed the connector and everything seemed fine. Yes, it was just one leg of the LED was loose. Thanks and cheers!" Howie (05/04/2020)

"Hi, Recently purchased psu plug and schematic deteials from you. Now have my mixer up and running-thanks. If I apply un-regulated 48 volts to pin3 on seck desk psu plug-will this give me 48v phantom as in the schematic-many thnaks Paul" (05/03/2011)
Reply: Yes, 48V phantom power on pin 3 is correct. The PSUs will need to share the common earth / 0V on pin 6.

History	Free Downloads	Manuals & Diagrams
Replacement PSUs	Reclaimed Parts	Your queries

History: Seck mixing consoles were manufactured by Bandive Ltd in England during the 1980s. Seck mixing consoles were compact, lightweight, well featured and good value for money and were distributed principally in UK, France and USA. Production began with models 6.2 and 12.2 intended for theatre and small PA use. The range then expanded with a 24 channel version (24.2) and two 8 bus consoles; the 12.8.2 and 18.8.2 which were designed for use with 8 track recorders although could also be used for live performance. In the early 1990s they were taken over by Soundcraft who ceased manufacturing under the Seck trade name, however, much of the design team's Research & Design was condensed into the Spirit series of budget mixers. Unfortunately, Soundcraft don't support legacy Seck products. We have used and repaired several Seck consoles in the past and have some technical information available. top
Manuals and circuit diagrams: Hard Copy User Manual with block diagram and PSU circuit diagram for models 6.2 or 12.2 or 24.2 Now sold out. Hard Copy User Manual with block diagram and PSU circuit diagram for models 12.8.2 or 18.8.2 Now sold out. Free downloads: a free schematic diagram for the standard 6 or 12 or 24 channel stereo mixer section. a free schematic diagram for the 12 or 18 channel 8 bus mixer section. a User Manual with block diagram for models 12.8.2 or 18.8.2 [1253kb] a free circuit diagram for the original Seck 5 rail regulated power supply. a free data sheet for the Seck 6.2 Mk1 a free data sheet for the Seck 6.2 Mk2 a free data sheet for the Seck 12.2 Mk1 a free data sheet for the Seck 12.8.2 a free data sheet for the Seck 18.8.2 top GB Audio offer some new, compatible replacement parts and reclaimed original parts to help you keep your mixer in tidy, working order:
	New Replacement power supplies: Lost your PSU? We offer new replacement power supplies: UK: PSU 22305UK replacement power supply. The NEW, upgraded, higher current, inline, two rail type is £ 79.00 This PSU is suitable for models 6.2, 12.2 and 24.2 This PSU is NOT* suitable for models 12.8.2 and 18.8.2* Input voltage: 230V AC Mains connector: 13A UK
as above, but with EU Schuko connector	Europe: PSU 22305EU replacement power supply. The NEW, upgraded, higher current, inline, two rail type is £ 79.00 This PSU is suitable for models 6.2, 12.2 and 24.2 This PSU is NOT* suitable for models 12.8.2 and 18.8.2* Input voltage: 230V AC Mains connector: European Schuko
	USA: PSU 21205USA replacement power supply: The NEW, upgraded, higher current, inline, two rail type is £ 79.00 This PSU is suitable for models 6.2, 12.2 and 24.2 This PSU is NOT* suitable for models 12.8.2 and 18.8.2* Input voltage: 110-120V AC Mains connector: USA 3 pin
	6 pin line female DC power supply connector is £ 9.50 each. 6 pin chassis male DC power inlet connector is £ 6.00 each.
	Fader cap (8mm slot) at £ 0.76 each and are only available in black. Now obsolete - limited stock available.
	T Fader cap (18mm slot) at £ 1.96 each and are only available in black.
	Alps mono channel fader at £ 9.95 ~~each (also for 8 bus group masters or master faders on 6.2 and 12.2~~ NOW OBSOLETE. These faders are electrically identical to the originals, but have a flatter profile so require short jumper wires to reach the PCB. These faders have a T type stem. so will require a T fader cap (see above). These faders are 128mm long with screw fixing centres 120mm, slot length 110mm, fader travel 100mm. They are not suitable for early Mk1 mixers which used 110mm fixing centres.
	Bourns stereo master fader (for 8 bus only) now only £ 16.28 each These faders are physically identical to the originals, but have a T type stem. These faders are 128mm long with screw fixing centres 120mm, slot length 110mm, fader travel 100mm. The stem is a T type which requires a different, 18mm T cap. top

Salvaged / Reclaimed Parts: Seck mixing consoles now breaking for parts: knobs, pots, switches, switch caps, connectors, 6 channel input block PCB, master block PCB, case hardware. These items are tested where possible, but otherwise sold as seen. Prices on application.
	PSU2. The original Bandive/Seck inline, two rail type This PSU is suitable for models 6.2, 12.2 and 24.2 This PSU is NOT* suitable for models 12.8.2 and 18.8.2* Input voltage: 230V AC Mains connector: 13A UK £ Sorry, none available at present

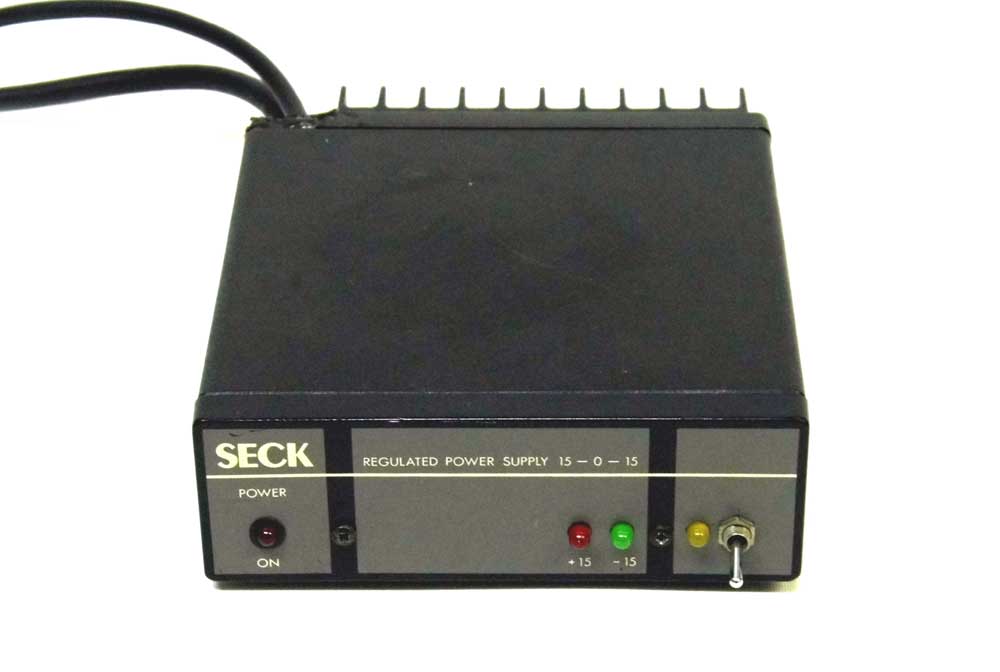

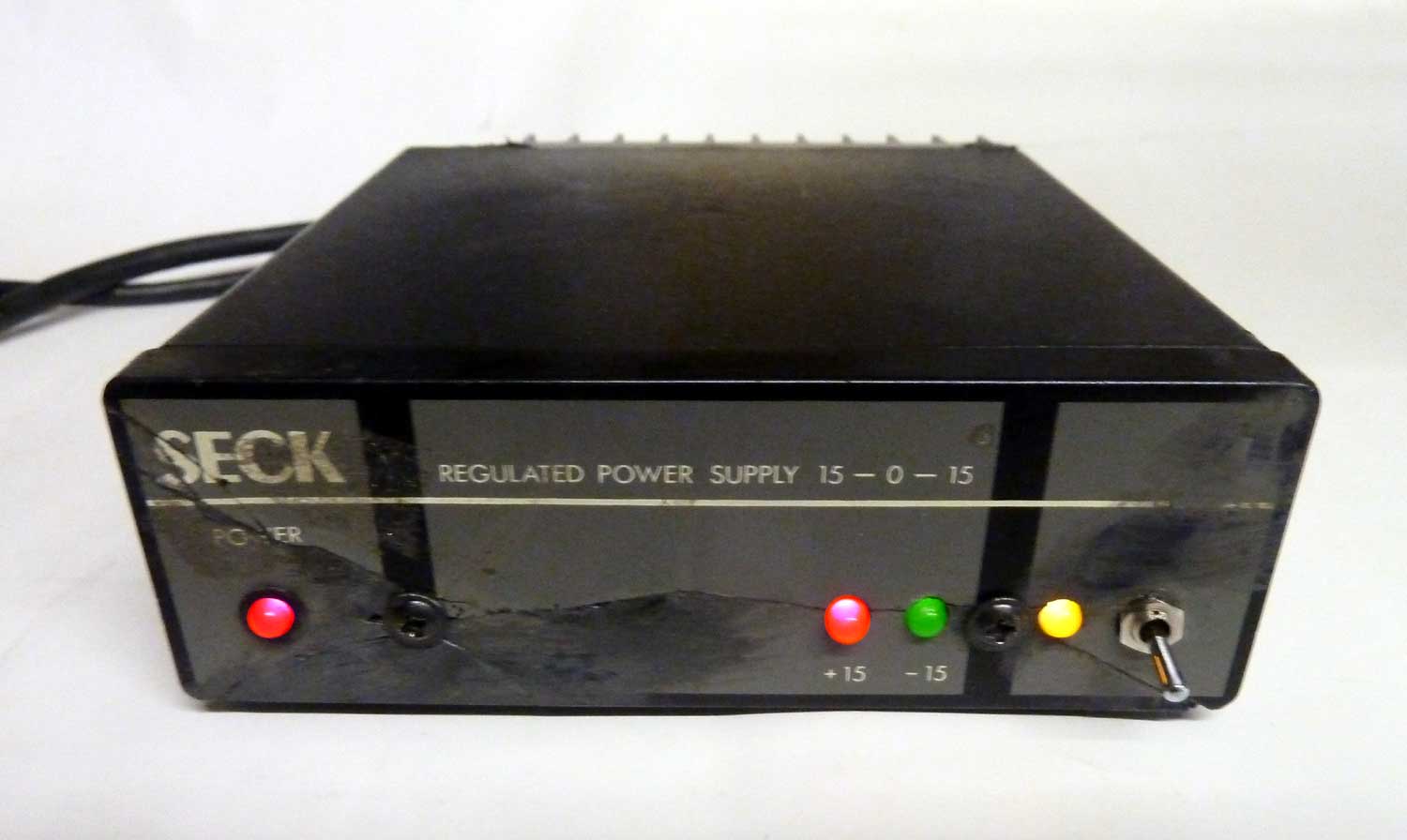

	PSU5. The original Bandive/Seck five rail regulated version was suitable for all models: 6.2 12.2 24.2 12.8.2 18.8.2 but is the only power supply which works on the models: 12.8.2 and 18.8.2 Input voltage: 100 / 120 / 220 / 240V AC. £ 160.00 at present, but you are welcome to join our waiting list. top
	Reclaimed knobs available in white, blue or beige @ £ 1.50 each.
	Reclaimed blue / white switch caps. @ £ 1.50 each.
	Reclaimed white fader caps (12W x 27L x 8mm stem) @ £ 2.50 each.
Mk1 series	Reclaimed mono channel fader or master fader for 6.2 (Mk1) and 12.2 (Mk1) @ £ 5.00 each. These faders are 118mm long x 12mm wide. Screw fixing centres 110mm, slot length 100mm, fader travel 90mm.
Mk2 series	Reclaimed mono channel fader. also for 8 bus group masters or master fader on 6.2 (Mk2) and 12.2 (Mk2) @ £ 6.00 each. These faders are 128mm long x 20mm wide. Screw fixing centres 120mm, slot length 110mm, fader travel 100mm. They are not* suitable for early Mk1 mixers which used 110mm fixing centres.*
	Reclaimed jack input socket @ £ 2.50 each.
	Reclaimed jack insert socket @ £ 2.50 each.
	Reclaimed XLR input socket insert (without shell) @ £ 2.50 each.
	Reclaimed pot HF/LF (100kB), MID (10kB), 6.2 Aux (50kA), 8 bus Aux (20kB), 6.2 Pan (50kA) Tape (10kA) 8bus aux return pan (5kB) @ £ 2.50 each.
	Reclaimed pot Gain (2x500kB), Mid frequency sweep (2x100kC), 8 bus Pan (2x10kB) @ £ 3.50 each.
	Reclaimed pot Headphone output, Mon master, Echo master (2x20kA) @ £ 8.00 each.
	Reclaimed PFL switch @ £ 2.50 each.
	Reclaimed Seck headphones socket assembly £ 5.00
	Reclaimed Seck Perspex meter cover £ 5.00
	Reclaimed Seck ribbon cable for 12.8.2 and 18.8.2 £ 5.00
no photo	Original UK two rail power supply for models 6.2 or 12.2 £ 50.00 Input voltage: 220 - 240V AC Mains connector: 13A UK
	Reclaimed Seck top panel for 12.2 Mk1 £ 5.00
	Reclaimed Seck top panel for 6.2 Mk1 £ 5.00 Including XLR shells.
	Reclaimed Seck 6-channel input block PCB for 6.2 Mk1 or 12.2 Mk1 (ch1-6) Most connectors, pots and switches present. No faders or knobs or switch caps. No edge connectors. Some components missing, therefore, no warranty. For spares or repairs. £ 20.00
	Reclaimed Seck RE701 6-channel input block PCB for 6.2 Mk2 or 12.2 Mk2. Most pots, knobs and switches present but some connectors missing. No faders, therefore, no warranty. For spares or repairs. £ 25.00
	Reclaimed Seck RE501 master block PCB for 6.2 Mk2 or 12.2 Mk2 or 24.2 Mk2. All faders, knobs, switch caps present. Most components present. Some components missing, therefore, no warranty. £ 30.00
	Reclaimed Seck RE602 6-channel block PCB for 12.8.2 or 18.8.2 with no faders and some components removed. Board tested OK before components removed. £ 30.00
no photo	Reclaimed Seck RE801 8 group master block PCB for 12.8.2 or 18.8.2 as above but without group faders. A few pots removed. Most components present. Tested - all working apart from Solo. £ SOLD
