GB Audio. Scotland's sound system design company hire sale installation service. Free technical information library, news, rental inventory, product datasheets, special offers, reviews, recent events. audio sound hire sale rental installation power amp amplifier recording playback loudspeaker speaker FX effects processor radio mic microphone headphone mixer mixing desk console control instrument backline stands rigging theatre concert festival Edinburgh Scotland UK  Free data sheet by GB Audio Services: sound system design, sale, hire, installation. SECK 6.2 Mk1


Production: Obsolete
Hire stock: No
New stock: No
Used stock: Yes
 Go Back one page

General Specifications
Inputs: balanced mic <-65dBu (1kOhm) XLR3F
           balanced line <-30dBu (50kOhm) TRS jack
           aux return <-15dBu (10kOhm)
Equaliser: Bass 15dB @ 45Hz
           Mid 15dB 330 - 6.5kHz sweep
           HF 15dB @ 11kHz
L&R Outputs: +4dBm 600 Ohm min load. Unbalanced XLR3M
                    max output +21dBm
Aux Outputs: +4dBm 1kOhm load. Unbalanced TRS jack
                    max output +21dBm
Fader type: 100mm carbon track
S/N Ratio: All outputs at max, -84dB
            All ch to mix, unity gain, -74dB
Unterminated equiv input noise, -127.5dB
T.H.D: <0.03% @1kHz,<0.04% @10kHz
Headphone Out: Stereo mix / mono PFL, 1.7W max. TRS jack

Price to rent         Price to buy

Click here for Seck support and spares, salvaged / reclaimed parts.

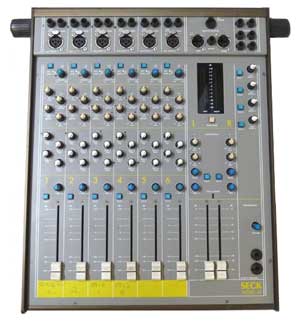

Seck 6.2 Mk1 stereo mixing console
Seck mixing console
6 channels for mic (XLR) or line (jack) inputs, each with phantom power, gain, insert, 3 band EQ (with mid sweep), 4 auxiliaries, pan, solo, 100mm fader.
Left and Right XLR outputs, 2 FX returns, LED meters, two headphone sockets, external power supply (PSU), hinged handle, all aluminium housing.

6.2 Mk2 model has identical layout, but with 110mm faders.
12.2 model has identical layout, but with 12 input channels.
24.2 model has identical layout, but with 24 input channels.

Free data sheet for the Seck 6.2 Mk2
Free data sheet for the Seck 12.2 Mk1
Free data sheet for the Seck 12.8.2
Free data sheet for the Seck 18.8.2
