33-1 MIC

DATA SHEET	Production:	Obsolete
	Hire stock:	Yes
	New stock:	No
	Used stock:	No

Check out our other retro & vintage mics

Accessories for vintage mics

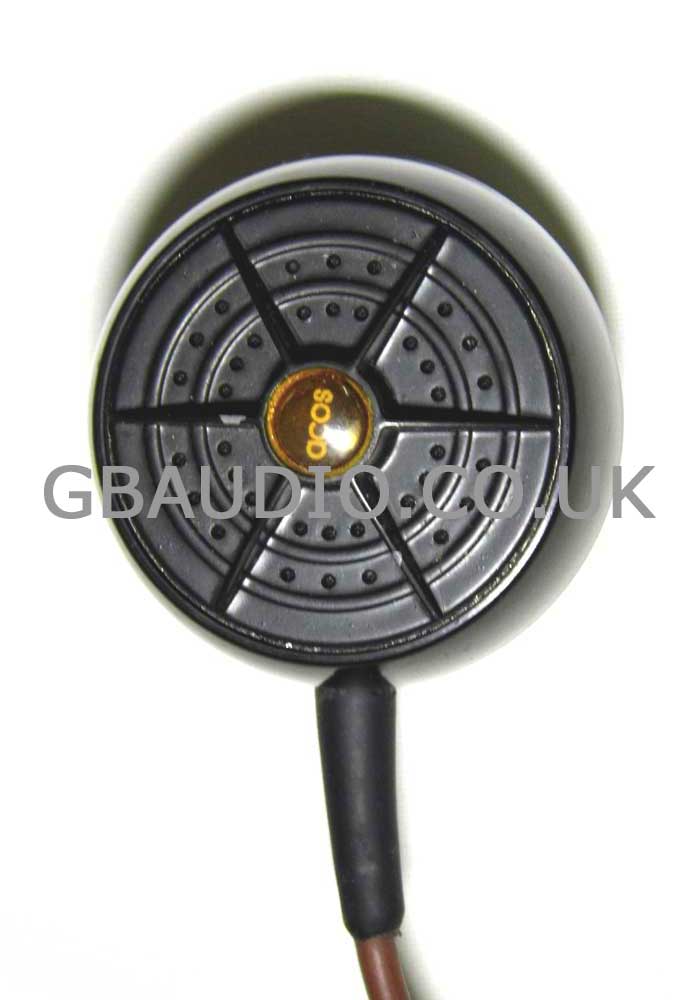

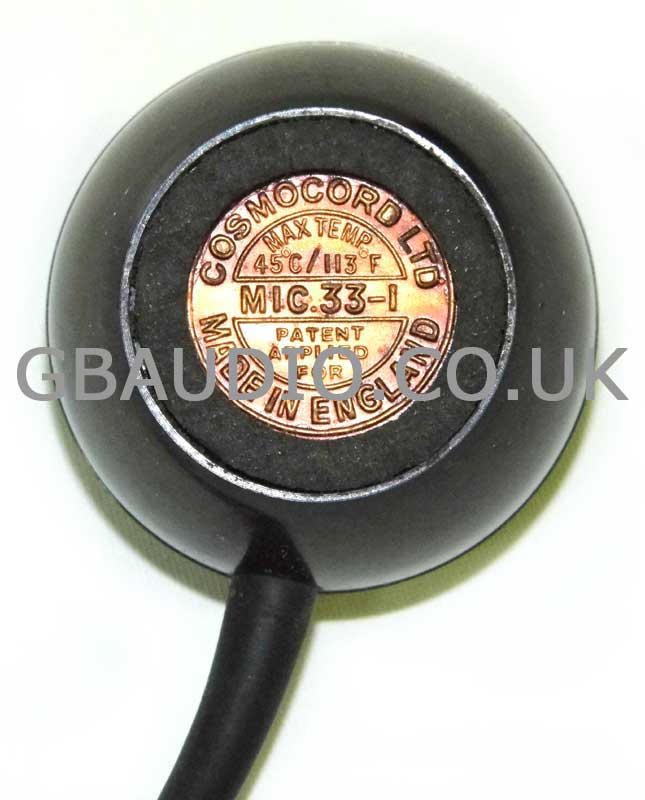

COSMOCORD ACOS 1930s ORIGINAL MIC

This microphone has been designed for quality results in the public address and home recording field. High sensitivity and a flat characteristic are obtained by means of a specially designed acoustic fileter, which reduces the variations between incident and grazing angle response, and the microphone is thus omni-directional for all frequencies within its range.

FEATURES
• Original period microphone with Bakelite body
• Handheld or desk mount (no thread)
• Non-functioning photo / film / theatrical prop

TECHNICAL SPECIFICATIONS
Transducer type . . . . . . . . . . . Crystal
Operating principle . . . . . . . . .
Frequency response . . . . . . . . substantially flat 30 to 7kHz
Polar pattern . . . . . . . . . . . . . . Omnidirctional
Nominal impedance. . . . . . . . .
Sensitivity. . . . . . . . . . . . . . . . -55db ref. 1 volt/dyne/cm2
Connector . . . . . . . . . . . . . . . . coaxial
Power Requirements . . . . . . . . .n/a
Diameter..................................54mm
Depth.......................................49mm
Weight . . . . . . . . . .. . . . . . . . .170g
