DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: No

Marantz CD player

Audio Characteristics
Channels :   2 Channels
Sampling frequency:  44.1 kHz
Quantization:16-bit linear/channel
Error correction: Cross-interleave read solomon correction (CIRC)
D/A conversion: 1-bit linear/channel

Optical Readout System
Laser:   GaAIAs semiconductor
Wavelength:  780 nm
Direct track selection 1-99

Frequency Characteristics
Frequency range: 5Hz - 20kHz
Dynamic range: > 96dB
S/N ratio:  >104dB
Channel separation: >102dB @ 1 kHz
THD:   >0.0025% at 1kHz
Analog output jack: 2V RMS @ 200 ohms 2 x RCA phono
Digital output:  .05Vp-p/75 ohms S/PDIF RCA phono
Optical output: -19dBm optical TOS link

Operating temperatures: +5 to +35 degree C
Operating humidity:  5% to 90% without dew
Power consumption:  13/12 watts
Dimensions: 420(w) x 86(h) x 300 (d) mm
Net Weight:   4.1 Kg (CD-63)
                    5.6 Kg (CD-63SE)

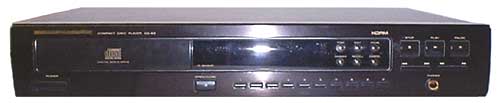

Marantz CD63 CD player

Hi-Fi World reviews
http://www.hi-fiworld.co.uk/hfw/bgcdplayers.html

Marantz CD-63, £249, Jun 94
"Upholds the Marantz tradition of lively CD players."    EISA Award Winner

Marantz CD-63SE, £350, May 95
"Taken as a whole, the CD-63SE is one hell of a CD player.  No digital nasties."

Marantz CD-63 KI-Sig, £500, Sep 96
"This is a rare player, greater than the sum of its parts."   EISA Award Winner

For very useful information, DIY modifications and upgrades visit:

Marantz CD-63 Mods by Lucio "How to improve without a soldering gun"
http://www.tnt-audio.com/clinica/cd63e.html

"The Naked Truth about the CD-63/7 CD-Player and some improvements along the way"
http://www.tnt-audio.com/clinica/cd67.html

"Mechanical Improvements for the CD-57 /67 / 67SE"
http://www.tnt-audio.com/clinica/cd67mods.html

Specification (from user guide) and links provided by Job Chithalan

If your CD tray does not open or needs to be thumped to retrieve your disc, it may be the drive belt is broken or slipping and needs to be replaced. We have a large range or replacement drive belts available.
