GB Audio. Scotland's sound system design company hire sale installation service. Free technical information library, news, rental inventory, product datasheets, special offers, reviews, recent events. audio sound hire sale rental installation power amp amplifier recording playback loudspeaker speaker FX effects processor radio mic microphone headphone mixer mixing desk console control instrument backline stands rigging theatre concert festival Edinburgh Scotland UK  Free data sheet by GB Audio Services: sound system design, sale, hire, installation. 2200S

DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: No
 Go Back one page

Specifications:
Output power: 450W RMS @ 8Ω
                      625W RMS @ 4Ω
(Bridge-Mono) 1200W RMS @ 8Ω
THD: <0.003% at 1kHz
        <0.025% 20Hz-20kHz @ 0.1W
Intermodulation Distortion: <0.01% 0.1W
Crosstalk: <-80dB, 1kHz ref 500W/8Ω
                <-70dB, 20Hz-20kHz
Noise: <-105dBA
Slew Rate: >100V per microsecond
Damping factor: >500, 50Hz, 8Ω
Frequency response: 20Hz-20kHz 0.25dB
Input sensitivity: 1V for 600W @ 4Ω
Input impedance: 20kΩ
Input gain: 34dB
Physical: 19" standard rack mount x 1u
Depth: rack to rear mountings: 520mm
Weight: 13kg (29lbs)
Mains power: 110/120/220/240V

Chameleon 2200S power amplifier

Chameleon 2200S lightweight power amplifier

Key Features:

  • Audio integrity: Ultra linear, non-switching electronic architecture guarantees true audio transparency. Developed from leading powered studio monitors.
  • Protection against short circuited outputs, heatsink thermal sensors, internal temperature protection, power supply monitoring.
  • Thermostatic fan: runs at variable speed, set by thermal sensors
  • Aluminium extrusion construction for strength, weight and thermal efficiency

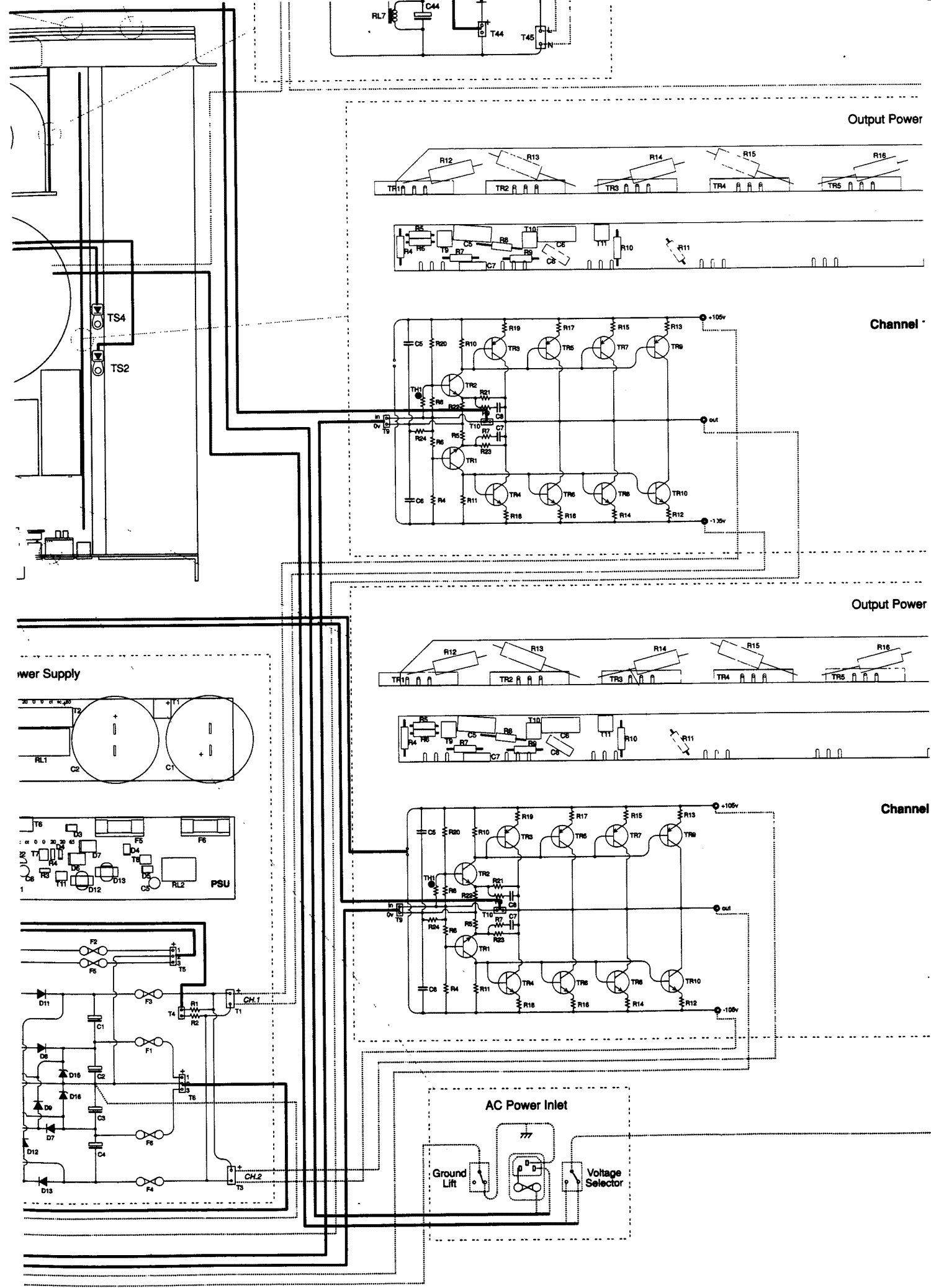

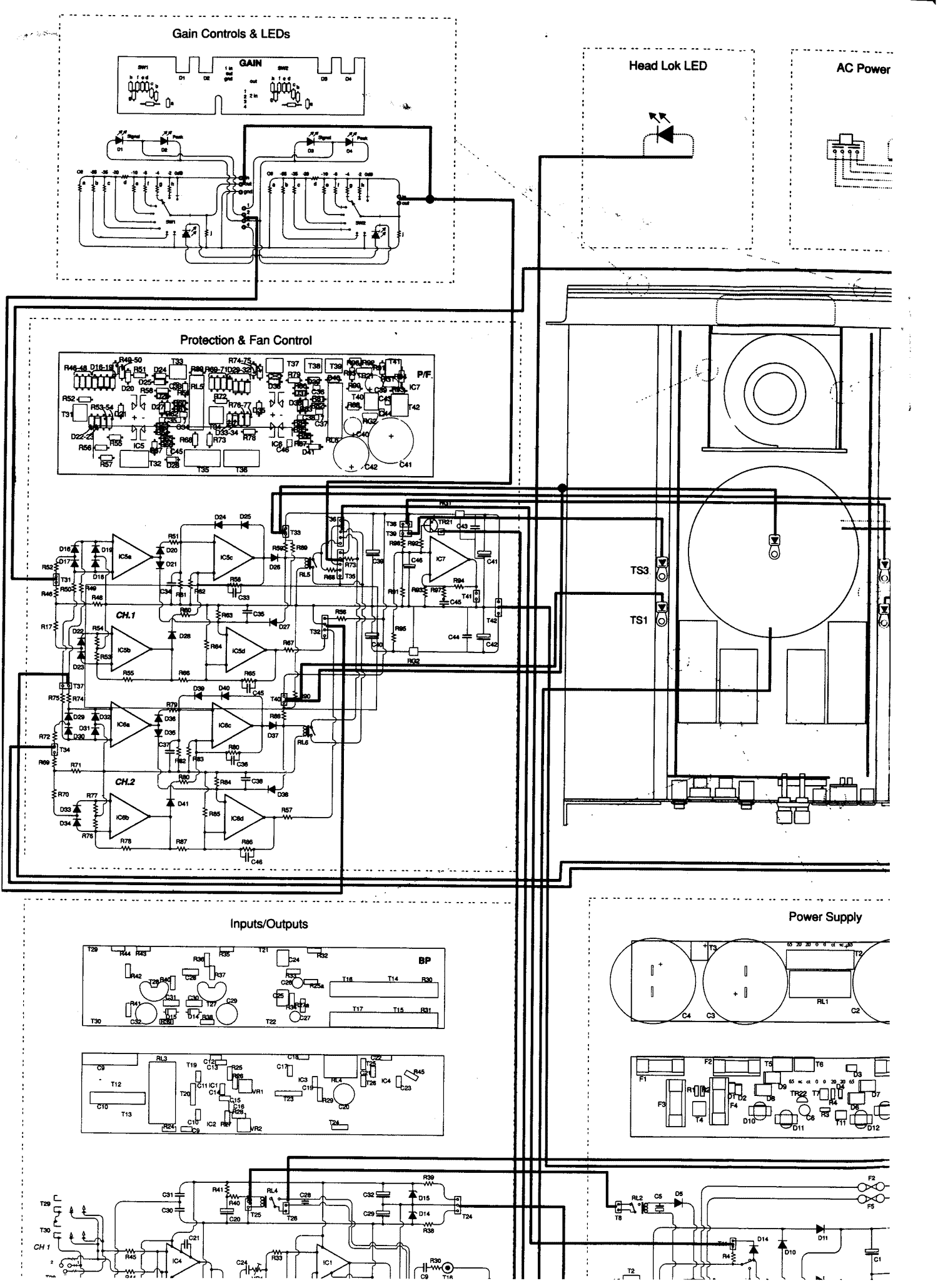

Free service information and circuit diagrams: 1, 2, 3, 4, 5, 6, 7, 8, 9
