DATA
SHEET

Production: Obsolete
Hire stock: Yes
New stock: No
Used stock: Yes
 Go Back one page

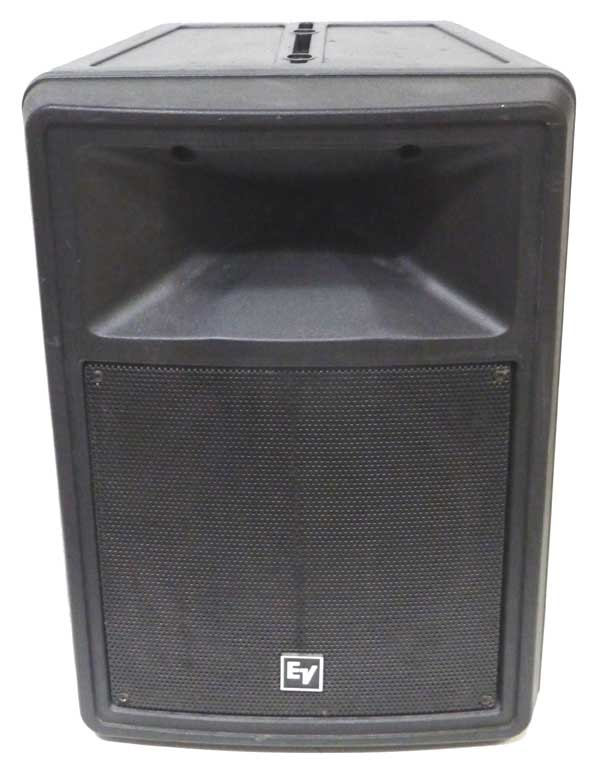

Electrovoice SX80 compact loudspeaker



Original Waveguide Horn Design
The constant directivity waveguide horn design produces smooth coverage
High-performance Drivers
Exceptional Low frequency performance - the highs are crisp and clean but the extended bass response in this tiny cabinet is in a class of its own. Frequency response is flat and smooth. Bullet proof performance thanks to Electrovoice's exclusive PRO-circuit (tm) which provides automatically re-setting protection for the tweeter.
Rugged Acoustically-designed Enclosures
Enclosures are moulded bass-reflex types with steel yoke mounts on top and bottom of the cabinet.
Suitable for nearfield monitoring, foreground and background music.

Available with or without custom hanging kit for 2" tube

Frequency Response 65 ~ 20 KHz
Power Capacity 175W (RMS) 640W (Short term peak)
Impedance 8 ohms
Sensitivity 92 dB/W/m
Speaker Components LF:8" Cone HF:1" Horn tweeter
Connections Neutrik NL4
Dispersion 90 x 65
Protection Circuit exclusive PRO(TM)-circuit H.F. protection
Dimensions (W x H x D) 400mm H x 292mm H x 240mm D
Weight 8.2 Kg
