DATA |
Production: | Obsolete |
| Hire stock: | No | |
| New stock: | No | |
| Used stock: | Yes |

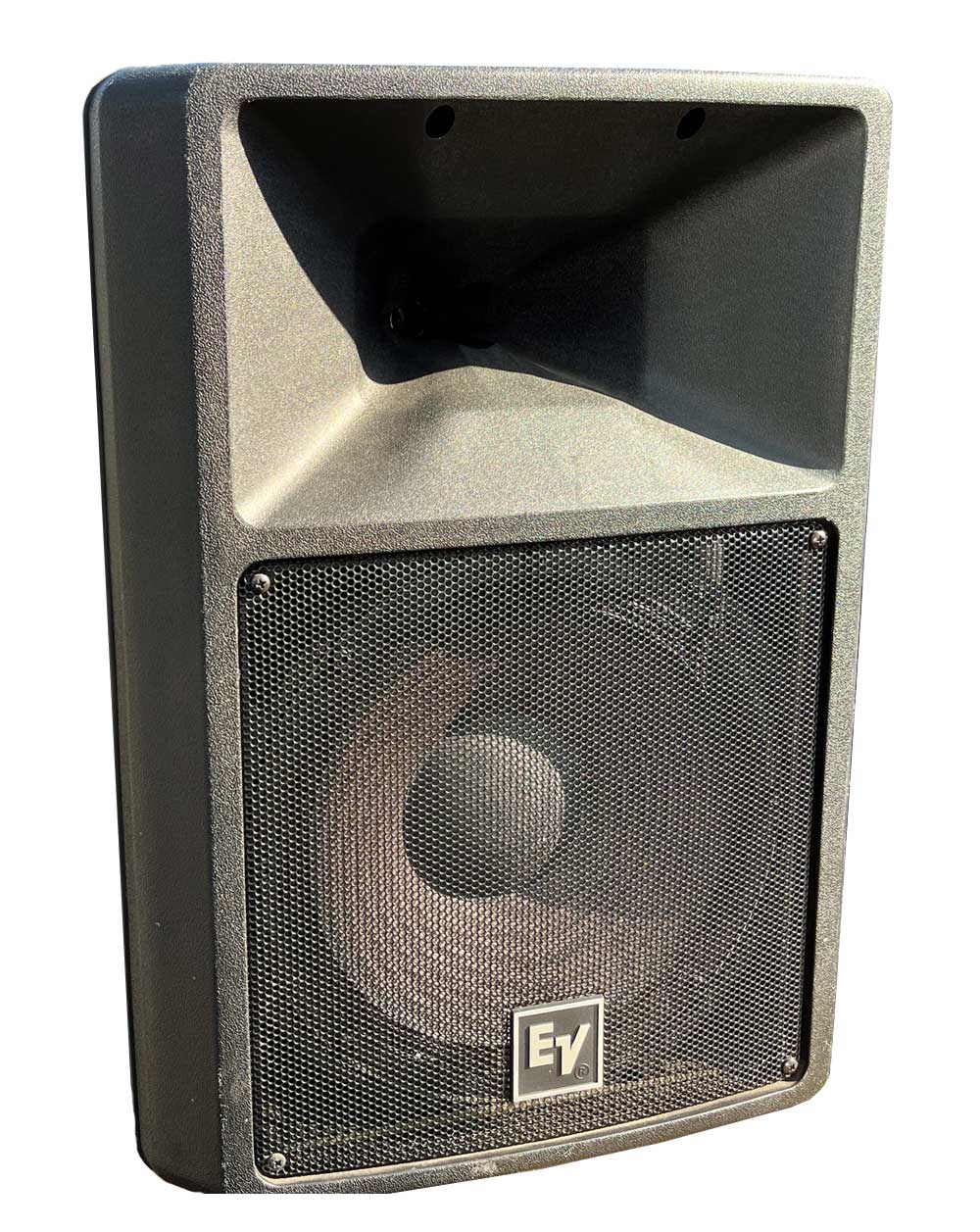

The integral waveguide horn design produces a virtually ideal spherical wavefront.
High-performance Drivers
Exceptional Low frequency performance - the highs are crisp and clean but the extended bass response in this tiny cabinet is in a class of its own. Frequency response is flat and smooth. Bullet proof performance thanks to Electrovoice's exclusive PRO-circuit (tm) which provides independent protection for the woofer and tweeter.
Rugged Acoustically-designed Enclosures
Enclosures are moulded bass-reflex types with steel yoke mounts.
Suitable for nearfield monitoring, foreground and background music.
| Frequency Response | 60 ~ 25 KHz |
| Power Capacity | 200W RMS |
| Impedance | 8 ohms |
| Sensitivity | 98 dB/W/m |
| Maximum SPL | 120 dB |
| Speaker Components |
LF:12" Cone HF:1.25" titanium tweeter |

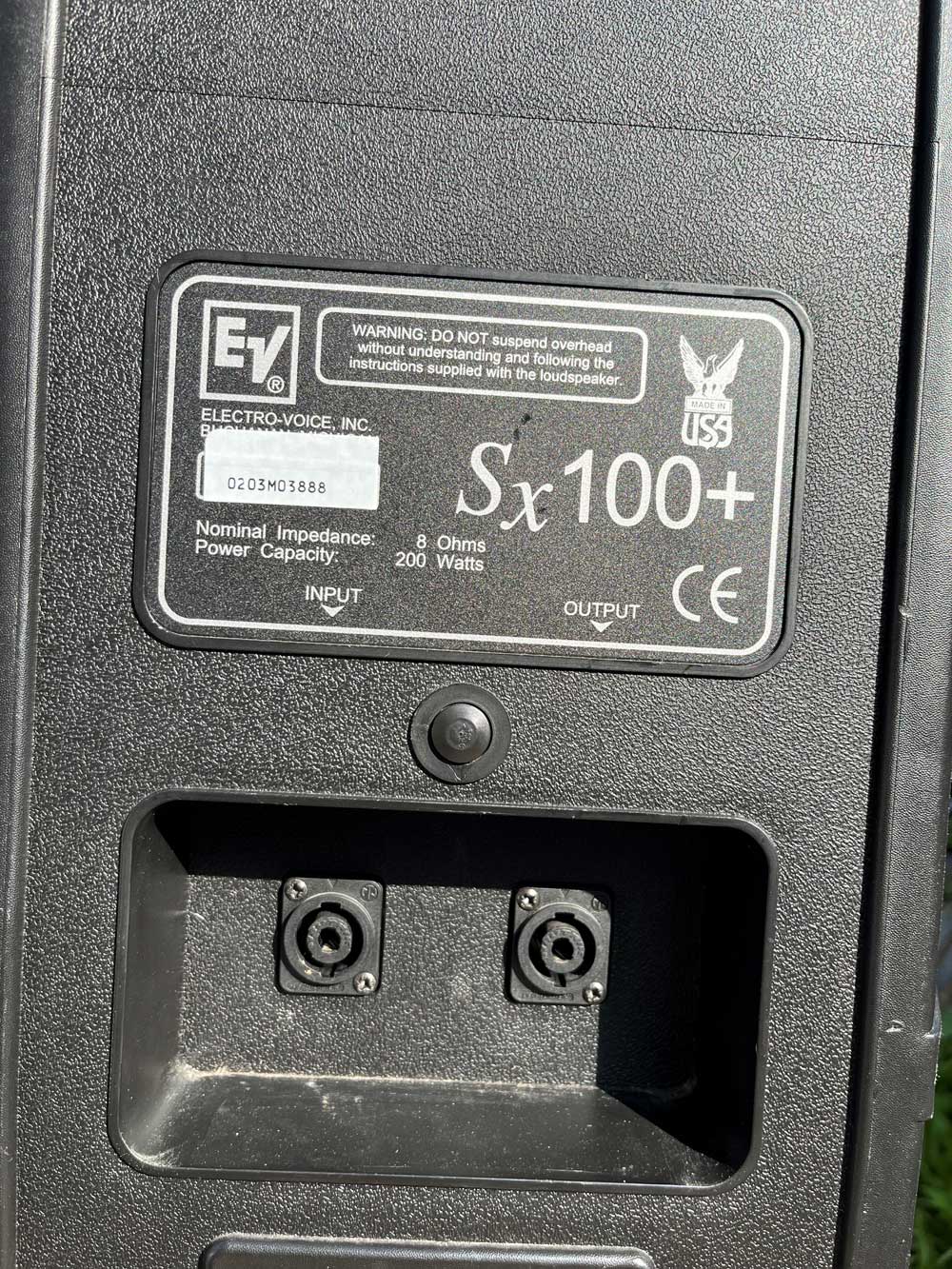

| Connections | Neutrik Speakon x2 |
| Dispersion | 65° x 65° CD varipath horn |
| Mounts | Pole mount & 4 x M8 flying studs |
| Dimensions (WxHxD) | 45 cm x 60cm x 31cm |
| Weight | 15 Kg |
