DATA
SHEET

Production: Obsolete
Hire stock: Yes
New stock: No
Used stock: No
 Go Back one page

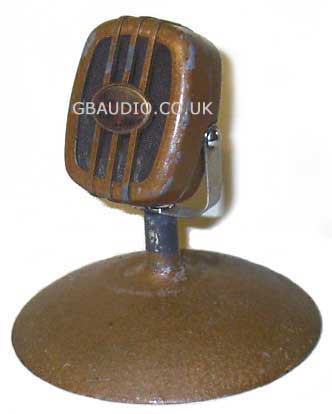

Pye classic vintage microphone

ORIGINAL PYE CASE, CUSTOM MODERN PERFORMANCE MIC

A 50's mic with adjustable pivoting die-cast body and chrome plated U bracket. A top quality ATM61HE hi-dyn dynamic insert, with balanced XLR connector and choice of standard integral stand mount or table stand (shown).

FEATURES
• Original period microphone casing
• Modern high quality vocal neodymium microphone capsule
• Rugged housing with low handling noise
• Integral mounting thread
• Fully functioning theatrical prop

TECHNICAL SPECIFICATIONS
Transducer type . . . . . . . . . . .  Dynamic moving coil
Operating principle . . . . . . . . . Pressure gradient
Frequency response . . . . . . .    50 - 18,000 Hz
Polar pattern . . . . . . . . . . . . . . Hypercardioid
Nominal impedance. . . . . . . . . 600 Ohms
Sensitivity. . .......... . . . . . . . ..  -51dB (2.8mV) re 1V @ 1 Pa
Weight w/out cable. . . . . . . . . . 430g

Check out our other retro & vintage mics

Accessories for vintage mics
