DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: Yes
 Go Back one page
Soundcraft power supply unit

Suitable for use with various Soundcraft mixing consoles including:
200SR (24ch), 200B (24ch), 200 Delta (24ch), 400 (24ch), 500 (24ch), 600 (24ch)

DC power connector: 10 pin screw-lock (ITT JC Range)
6 Output rails: +17V, -17V, +48V, +24V, +7.5V, -7.5V
Power requirements: 100/120/200/240VAC 50/60Hz
Input power: 100VA
Dimensions: 483(w) x 240(d) x 89(h)mm
Physical: standard 19" (2u) rack mount
Weight: 6kg

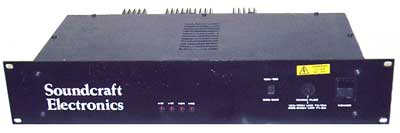

Soundcraft PSM1038 mixing console power supply unit



Price to buy
