DATA
SHEET

Production: Current
Hire stock: Yes
New stock: Yes
Used stock: No
 Go Back one page
Crown Boundary Mic

Specifications:

Element Type: Electret Condenser
Frequency Response: 40 Hz to 18 kHz
Polar Pattern: Half-Supercardioid
Impedance: 150 ohms
Sensitivity: 22 mV/Pa
Connector: XLR3M
Power requirements: 12-48V phantom power

The PCC160 was unavailable throughout Europe since 2006 because it did not comply with RoHS Directive 2002/95/EC.

August 2013 - The PCC160 (and Crown's whole PZM microphone range) has now been re-introduced in Europe, compliant with the EU Directive.

Special re-launch offer price 259.00 + VAT.
(20% off the normal pro-user price)

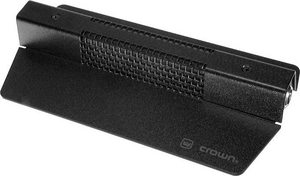

Crown PCC160 unidirectional boundary microphone

Long recognized as an industry-standard stage-floor microphone, the supercardioid PCC-160 is also great for lecterns, conference tables and discretely building into theatre sets. Anywhere maximum gain and articulation are essential. PCC
(Phase Coherent Cardioid) boundary technology guarantees high gain before feedback and phase coherence throughout the audible spectrum, with sensitivity increased by 6 dB. For best results, mount on a large, flat, hard surface such as a floor, table, wall, window, etc.

Key Features:

  • Discreet low profile appearance for unobtrusive use on stage or TV.
  • High gain before feedback.
  • Capable of withstanding up to 120dB SPL without distorting.
  • A bass tilt switch allows the user to tailor the low end response for particular applications.
  • Reduces unwanted room noise and rejects sounds from the rear.
  • Supplied with a 5m cable
