DATA
SHEET

Production: Obsolete
Hire stock: Yes
New stock: No
Used stock: No
 Go Back one page

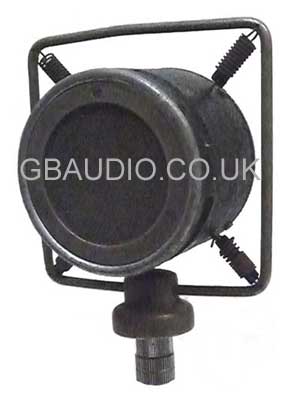

Grampian MCR original vintage moving coil microphone

Grampian MCR original vintage moving coil microphone

GRAMPIAN ORIGINAL 1930s VINTAGE DYNAMIC MICROPHONE

FEATURES
Genuine period microphone
Integral spring suspension
Standard thread mount

• Fully functioning theatrical prop

TECHNICAL SPECIFICATIONS
Transducer type . . . . . . . . . . .  Dynamic
Operating principle . . . . . . . . .  Pressure gradient
Frequency response . . . . . . . .  50 - 18kHz
Polar pattern . . . . . . . . . . . . . . Hypercardioid
Nominal impedance. . . . . . . . .  600 Ohms
Sensitivity. . . . . . . . . . . . . . . .
-51 dB (2.8 mV) re 1V at 1 Pa*
Connector . . . . . . . . . . . . . . . . 3 pin vintage connector to XLR3M lead
Dimensions . . . . . . . . . . . . . . . 145mm (h) x 118mm (w) x 65mm (d)
Weight with cable. . . . . . . . . . . 1.3kg

Price to rent

Check out our other retro & vintage mics

Accessories for vintage mics
