DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: Yes
 Go Back one page
Mustang Maestro 60

Integrated 60W PA paging amplifier


Works with either low impedance speakers (4 ohms load) or 100V line speakers.
Inputs: Two microphone inputs, Three mic/line inputs, One phono/line input, One tape input/output.

All inputs on 5 pin DIN connectors.
Speaker outputs: screw terminals

Controls: Six input levels, Master Volume, Treble & Bass.
Output LED meter.
Dimensions: 404(w) x 89(h) x 328(d) mm.
Weight: 8kg.
Power requirements: 230VAC or 24VDC.

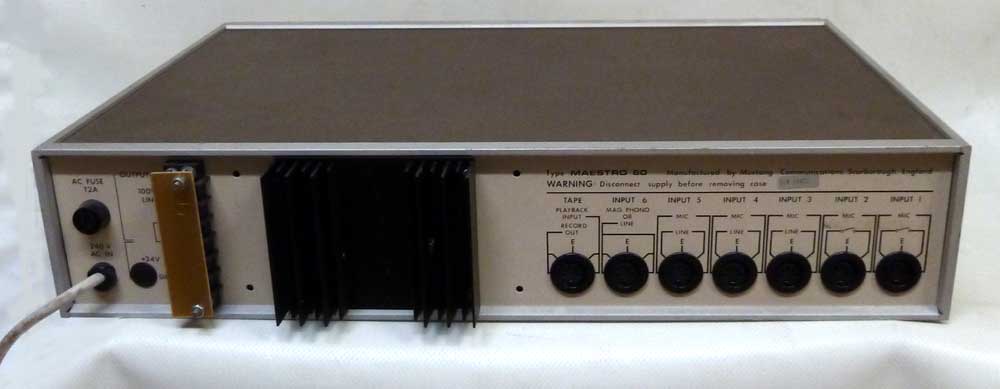

Mustang Maestro 60 professional PA paging amplifier

Mustang Maestro 60 professional PA paging amplifier
