BEYERDYNAMIC M88NC

FEATURES
• Highly defined hypercardioid polar characteristic
• Sensitive, accurate response
• Extended frequency range with rising high end and exceptional bass reproduction
• High SPL handling capability
• Integral -20 dB humbucking filter

TECHNICAL SPECIFICATIONS
Transducer type . . . . . . . . . . . . Dynamic moving coil
Operating principle . . . . . . . . . Pressure gradient
Frequency response . . . . . . . . . 30 - 20,000 Hz
Polar pattern . . . . . . . . . . . . . . Hypercardioid
Open circuit voltage
at 1 kHz (0 dB = 1V/Pa) . . . . . . 2.3 mV/Pa = -53 dBV
Nominal impedance. . . . . . . . . 200
Load impedance. . . . . . . . . . . . 1000
Weight w/out cable. . . . . . . . . . 320 g

Price to rent                Full Beyer price list

Beyerdynamic M88NC hypercardioid dynamic microphone

APPLICATIONS
The M88NC offers both a wide frequency response and rugged construction making an ideal combination for many applications. In the studio and live use its high SPL capability allows the microphone to be placed close to loud sound sources such as kick drum and bass guitar. It is also equally impressive as a vocal microphone or for brass and woodwind instruments.
The M88NC is often used in a broadcast environment as an announcers or EFP microphone.

The TourGroup version (M88TG) has a black reinforced basket to withstand rough handling when being used for more demanding applications.
Beyerdynamic M88TG hypercardioid dynamic microphone

NOTE:
These versions of the M88 microphone have an XLR3 connector. The older (60s-70s) grey/metalic body version was originally manufactured with a locking 3 pin DIN connector, which are still available to purchase

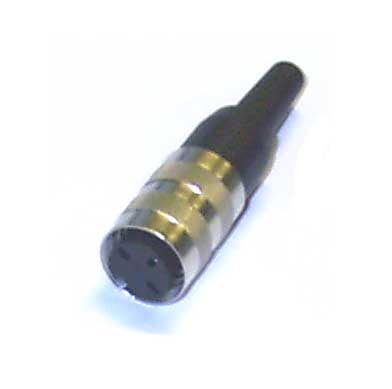

3pin locking DIN microphone connector
