BEYERDYNAMIC M260N

TECHNICAL SPECIFICATIONS
Transducer type. . . . . . . . . . . . . . . . . .  Dynamic
Operating principle. . . .  . . . . . Pressure gradient
Frequency response. . . .. . . . . . . 40 - 18,000 Hz
Polar pattern. . . . . . . . . . . . . . . . .  Hypercardioid
Rear attenuation at 1 kHz . . .. . . . > 20 dB at 110
Open circuit voltage
at 1 kHz (0 dB = 1 V/Pa). . 1.2 mV/Pa = -58 dBV
Nominal impedance . . . . . . . . . . . . . . . 200 Ohms
Load impedance .. . . . . . . . . . . . . . . 1000 Ohms

Diaphragm . . . .  . . . . . . . . . . . . . . Pure aluminium
Case/finish . . . . . . . . . . . . . . . . . . . . . . . . . Brass
Connector . . . . . . . . . . . . . . . . . . . . . . .
3 pin DIN
Dimensions . . . . . . .. . . . . . . . . . . Length: 190mm
                                      Shaft diameter: 24/30 mm
                                           Head diameter: 51 mm
Weight without cable . . . . . . . . . .  approx. 300 g

Full Beyer price list

accessories for vintage mics

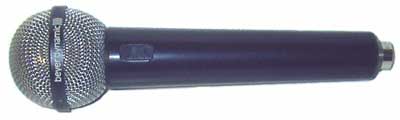

Beyerdynamic M260N ribbon microphone 3pin locking DIN microphone connector

FEATURES
• Ribbon transducer performance in a rugged, versatile configuration
• Hypercardioid polar pattern
• Fast, transient response
• Wide, flat frequency response
• On / off switch
• Warm sound

APPLICATIONS
The M 260N is an outstanding broadcast announcer’s microphone which is also effective for all types of remote and in-studio voice reproduction. In the recording studio, the M 260 is recommended as an overhead drum mic, for miking pianos and for vocals. The M 260’s flat frequency response and natural, warm "ribbon" sonic profile make it a highly effective element of the digital recording process. The M260 is specified by leading acoustical consultants for meeting rooms, teleconferencing and paging applications.

NOTE:
This microphone has a locking 3 pin DIN connector, which is available to purchase
