DATA
SHEET

Production: Obsolete
Hire stock: Yes
New stock: No
Used stock: No
 Go Back one page

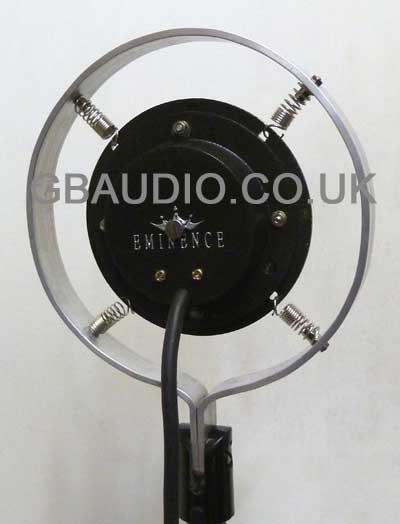

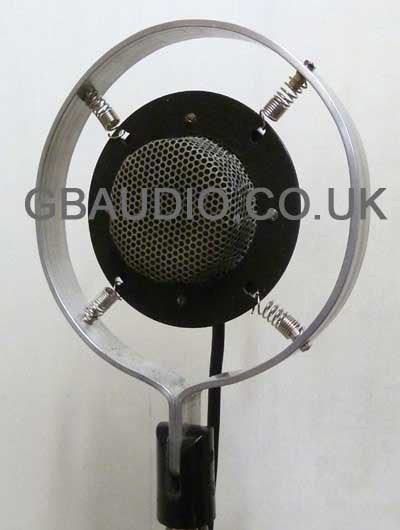

Eminence vintage style microphone



Eminence vintage style microphone



Check out our other retro & vintage mics

Accessories for vintage mics

ORIGINAL CUSTOM RETRO STYLE MIC

An iconic vintage style mic with chrome body. Spring mounted in an aluminium frame with standard thread mount.

FEATURES
Custom period style microphone housing
Integral suspension mount
Fully functioning theatrical prop
M
odern cardioid condenser capsule.

TECHNICAL SPECIFICATIONS
Transducer type . . . . . . . . . . . . Condenser
Operating principle . . . . . . . . .  Pre-polarised electret
Frequency response . . . . . . . . .30 - 20,000 Hz
Filter switch . . . . . . . . . . . . . . . 80Hz high pass
Po
lar pattern . . . . . . . . . . . . . . cardioid
Nominal impedance. . . . . . . . .  250 Ohms
Sensitivity. . . . . . . . . . . . . . . . . -39dB 3dB @ 1kHz
Connector . . . . . . . . . . . . . . . . . XLR3M on 2.4m fixed lead
Power Requirements . . . . . . . . . 11-52V DC phantom power
Weight . . . . . . . . . .. . . . . . . . . .365g (excluding stand)
Dimensions (mm) . . . . . . . . . . . 150 dia x 215(h) x 45(d)






The Kings Speech' by Oldbury Rep Theatre Company (May 2022). Photograph by Alan Wood

The Kings Speech' by Oldbury Rep Theatre Company (May 2022). Photograph by Alan Wood
The Kings Speech' by Oldbury Rep Theatre Company (May 2022). Photograph by Alan Wood. YouTube link
