DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: Yes
 Go Back one page
Mustang Maestro DL500

10A induction loop amplifier.

Inputs: One microphone input (XLR), One line input, One tape input/output, One Maestro interface (5 pin DIN connectors), speaker input (bare wire terminals - from an existing PA amp or speaker line).
Outputs: 4mm banana sockets (or bare wire) for single turn induction loop.

1/4" headphone socket
Controls: One Mic input levels, one line input level, Master Volume.
Output current LED meter.
Dimensions: 404(w) x 89(h) x 342(d) mm.
Weight: 7.5kg
Power requirements: 230VAC or 24VDC.

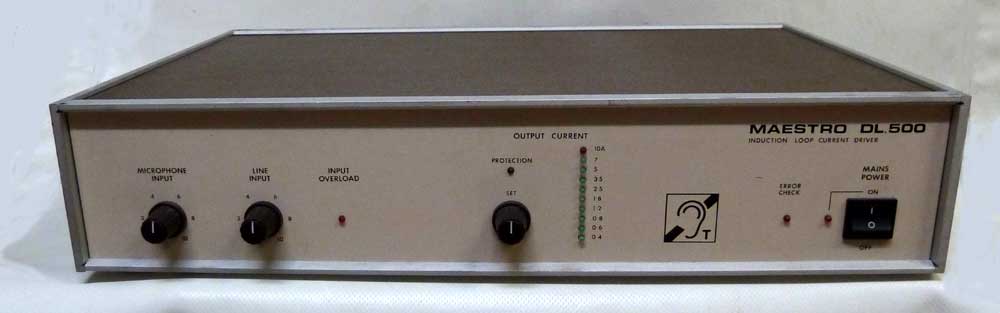

Mustang Maestro DL500 induction loop amplifier

Mustang Maestro DL500 induction loop amplifier
