DATA
SHEET

Production: Obsolete
Hire stock: Yes
New stock: No
Used stock: No
 Go Back one page

Marantz CD recorder / duplicator

Audio Characteristics
Channels :  2 Channel stereo
Automatic sampling rate:  32/44.1/48 kHz
Applicable discs: CD, CD-R, CD-RW
Headphone: 0 - 5Vrms 8 - 2000 ohms

Frequency Characteristics - CDR outputs
Frequency range: 20Hz - 20kHz
Dynamic range: 96dB
S/N ratio:  100dB
THD:   91dB
Analog output jack: 2V RMS @ 200 ohms 2 x RCA phono
Digital output:  .05Vp-p/75 ohms S/PDIF RCA phono
Optical output: -20dBm optical TOS link

CDR inputs
Analog intput: 500mV RMS @ 50K ohms 2 x RCA phono
Analog intput: 0dBu to +22dBu @ 50K ohms 2 x bal XLR
Digital input:  .05Vp-p/75 ohms S/PDIF RCA phono
Optical input: -20dBm optical TOS link
Frequency range: 11Hz - 56kHz
Dynamic range: 88dB (analog)
S/N ratio:  88dB (analog)
THD:   83dB (analog)

Accessories: RC6050DR Infra-Red remote control
Power requirements: 100-240V AC 50/60Hz
Power consumption:  19 watts
Dimensions: 483(w) x 100(h) x 340 (d) mm
Net Weight:   4.7 Kg

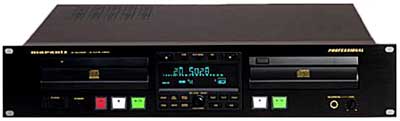

Marantz CDR500 CD recorder / duplicator


Rear connector panel

Key Features:

  • Comprehensive choice of analog and digital inputs
  • Independent, simultaneous playback on two decks
  • Duplication in real time, 2x or high speed
  • Auto or manual track marking
  • Text input and editing
  • Orange Book standard recording (Red Book compatible)
