DATA
SHEET

 Production: Obsolete
Hire stock: Yes
New stock: No
Used stock: No

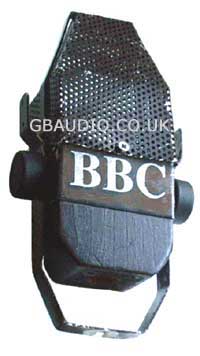

Vintage BBC AXBT microphone prop



Check out our other retro & vintage mics

Accessories for vintage mics

 Stage prop based on the classic BBC AXBT ribbon mic

An iconic vintage mic with adjustable mounting yoke. Can be supplied as an empty shell for or with an integral AKG C451EB/CK1 condenser capsule for practical use.
Available with a standard 3/8" thread mount for attaching to any regular microphone stand. Or available with a period style floor or table stand.

FEATURES
 • Reproduction of a vintage period microphone
• Integral mounting yoke
• Available as a shell or fully functioning theatrical prop,

TECHNICAL SPECIFICATIONS (AKG C451EB/CK1)
 Transducer type . . . . . . . . . . . . Condenser
Operating principle . . . . . . . . . . Pre-polarised electret
Frequency response . . . . . . . . . 20 - 20,000 Hz
Filter switch . . . . . . . . . . . . . . . 75 or 150Hz high pass
Polar pattern . . . . . . . . . . . . . . cardioid
Nominal impedance. . . . . . . . .  low Ohms
Sensitivity. . . . . . . . . . . . @1kHz: 0.95mV/ubar=9.5mV/Pa
                                               (-60.5dBV)
Connector . . . . . . . . . . . . . . . . . XLR3M
Power Requirements . . . . . . . . . 9-52V DC phantom power
Weight . . . . . . . . . .. . . . . . . . . .460g (excluding stand)

HISTORY
The original A Type ribbon microphone was designed by the BBC in 1934 and manufactured as the AXBT for them by Marconi from 1936. Read the full history here.

'The Kings Speech' by Oldbury Rep Theatre Company (May 2022). Photograph by Alan Wood
'The Kings Speech' by Oldbury Rep Theatre Company (May 2022).
Photograph by Alan Wood. YouTube link

'Under Milk Wood' at The Peoples Theatre, Newcastle Upon Tyne 'Under Milk Wood' at The Peoples Theatre, Newcastle Upon Tyne

'Under Milk Wood' at The Peoples Theatre, Newcastle Upon Tyne 'Under Milk Wood' at The Peoples Theatre, Newcastle Upon Tyne

"Under Milk Wood" at the Peoples Theatre, Newcastle upon Tyne (June 2017).



BBC AXBT prop mic in "On The Air". Photo by Liz Roberts
Photograph by Liz Roberts

BBC AXBT prop mic in "On The Air". Photo by Beth Pryor
Photograph by Beth Pryor

BBC AXBT prop mic in "On The Air". Photo by Liz Roberts
Photograph by Liz Roberts
"On The Air", Trout Inn, Lechdale (July 2018)



The Goon Show: Monster Raving Loony: Joanna Brookes, Samuel James & Camilla Beeput. Photograph by Steve Tanner
The Goon Show: Monster Raving Loony: Joanna Brookes, Samuel James & Camilla Beeput.  Photograph by Steve Tanner
