Audio-Technica radio microphone kits

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance

  • 2.4 GHz range – completely free from TV interference

  • Three levels of diversity assurance: frequency, time, & space

  • Automatic frequency selection for seamless, interference-free operation

  • Extremely easy operation with instantaneous channel selection, sync, and set-up

  • State-of-the-art digital receiver for reliable performance

  • Balanced XLR and unbalanced 1/4” output jacks with level control



SPECIFICATIONS:

OVERALL SYSTEM

  • Operating Frequencies: 2.4 GHz ISM band
  • Dynamic Range: >109 dB (A-weighted), typical
  • Total Harmonic Distortion: <0.05% typical
  • Operating Range: 30 m (100') typical Open range environment with no interfering signals
  • Operating Temperature Range: 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
  • Frequency Response: 20 Hz to 20 kHz Depending on microphone type

MAINS RECEIVER

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions: 190.0 mm (7.48") W x 46.2 mm (1.82") H x 128.5 mm (5.06") D
  • Net Weight: 290 grams (10.2 oz)
  • Accessory Included: Power supply

BODY-PACK TRANSMITTER

  • Rf Power Output High:10 mW
  • Spurious Emissions:Following federal and national regulations
  • Input Connections: Four-pin Locking Connector
    Pin 1: GND, Pin 2: INST INPUT,
    Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
  • Batteries: Two 1.5V AA not included
  • Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
  • Dimensions: 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
  • Net Weight: 100 grams (3.5 oz) without batteries

HANDHELD TRANSMITTER

  • Rf Power Output High: 30mW; Low: 10mW, nominal
  • Spurious Emissions: According to National Regulations
  • Batteries: Two 1.5V AA not included
  • Battery Life: >7 hours (alkaline) Depending on battery type and use pattern
  • Dimensions: 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
  • Net Weight: 280 grams (9.9 oz) without batteries
  • Accessory Included: AT8456a Quiet-Flex™ stand clamp




Optional ATW-T1006 boundary microphone transmitter

ATW-T1006 wireless boundary mic for System 10

Optional ATW-T1007 microphone desk stand transmitter

 ATW-T1007 wireless gooseneck mic base for System 10

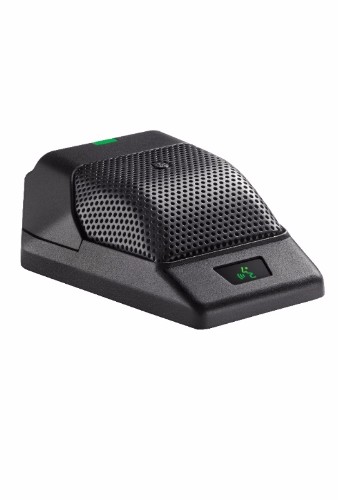

Boundary Microphone/Transmitter
A perfect fit for conference rooms and other meeting spaces, the ATW-T1006 System 10 Boundary Microphone/Transmitter pairs with any System 10 PRO or System 10 digital wireless receiver to provide reliable 2.4 GHz wireless performance.

The ATW-T1006 comes equipped with a touch-sensitive user switch to toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button.

Available April 2016

Microphone Desk Stand Transmitter
Designed to work with phantom-powered, condenser gooseneck microphones with a 3-pin XLRM-type output, the ATW-T1007 System 10 Microphone Desk Stand Transmitter pairs with the System 10 PRO or System 10 digital wireless receiver of your choice to provide rock-solid, 2.4 GHz wireless performance.

Available April 2016



Optional ATW1501 Stomp box receiver option

Optional ATW-R1700 camera mount receiver option

STOMP BOX RECEIVER

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: 1/4" (6.3 mm), TRS balanced: +12 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
  • Dimensions: 101 mm (3.98") W x 44 mm (1.73") H x 130 mm (5.12") D
  • Net Weight: 565 grams (19.9 oz)
  • Accessories Included: Power supply, hook & loop fastener x2



PORTABLE RECEIVER

  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level: 3.5 mm (1/8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode external USB-type external power supply
  • Battery: Internal Battery: 3.7V rechargeable Li-ion battery
  • Battery Life:
    • 12 hours
    • Depending on environmental conditions
    • Battery Charging Time: 4 hours 30 minutes
    • Depending on environmental conditions
    • Charging Temperature Range: 5° C to +35° C (41° F to 95° F)
  • Dimensions: 56.0 mm (2.20") W x 91.4 mm (3.60") H x 27.8 mm (1.09") D
  • Net Weight: 105 grams (3.7 oz)
  • Accessories Included: Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable

Post 2012 compliant* Free to use, no licence required in UK. Check here for UK radio mic frequency allocations
