DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: Yes
 Go Back one page
Specifications:
S/N Rate (A weight): >103 dB
Freq. resp.: 20 Hz - 20 KHz (+/-0.3dB)
Input-mode: 1 pair in/4 pairs out or 1 mono in/8 mono out (switchable)
THD%: < 0.03%
Dynamic range: 118 dB
Max. increase of output: +12dB/CH
Power: AC 2 x 18 V 500mA
Output impedance: balanced 300 Ohm / unbalanced 150 Ohm
Input impedance: balanced 20 KOhm / unbalanced 10 KOhm
Output connector: XLR (pin 2 hot)
Input connector: XLR (pin 2 hot)
Dimensions: 483mm x 115mm x 44.5mm (LxWxH)
Weight: 2 Kg
DAP Audio ASD-24 - a low distortion, low noise active signal distributor

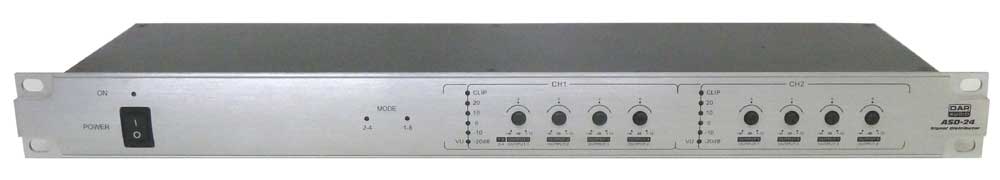

DAP Audio ASD-24 audio distribution amplifier 2 in, 8 out

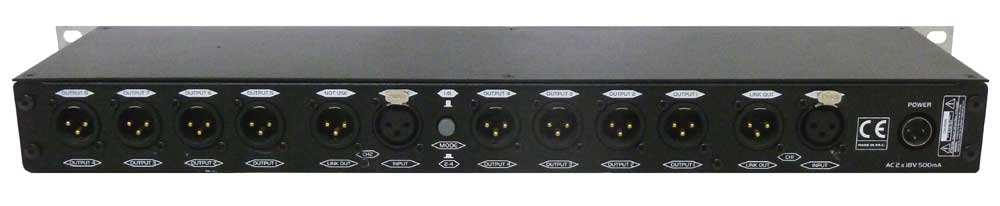

DAP Audio ASD-24 audio distribution amplifier 2 in, 8 out

This powerful unit is a very useful tool for stage and studio and has several functions that will meet your high expectations. Each input channel has been set up with parallel output connector. It can link more distributors and distribute more channel output and a constant output level assures signal level consistency. A VU indicator shows the changes of signal level all the times. Signal output choices selectable via rear panel switch. 1 mono in/8 x mono out. Or stereo in/4 x stereo out.
