Audiolab 8000A Integrated Amplifier

Specifications

Power output: 60 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.05%
Input sensitivity: 0.11mV (MC), 2mV (MM), 100mV (line)
Signal to noise ratio: 75dB (MC), 78dB (MM), 80dB (line)
Channel separation: 60dB (line)
Output: 100mV (line), 0.7V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Dimensions: 445 x 74 x 335mm
Weight: 7.6kg

Datasheet submitted by Job Chithalan

Manual and further info: http://www.hifiengine.com/manual_library

Customer Reviews: http://www.audioreview.com

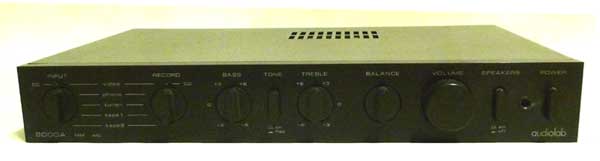

Audiolab 8000A integrated amplifier
Audiolab 8000A integrated amplifier

The Audiolab 8000A Integrated Amplifier has earned an international reputation for exceptional sound quality, elegant design and the unrivaled ability to complement all types of modern Hi-fi components.

The 8000A offers real flexibility. It will drive all types of loudspeakers which allows you to choose from a wide variety of models. Power output is 60 watt per channel. It has inputs for CD, phono, tuner, video, tape 1 and tape 2. The low noise phono inputs are designed to match all types of Moving Coil and Moving Magnet pickup cartridges.

Three tape outputs ensure complete compatibility with analog, digital and video sound recorders. Independent input and record switching lets you monitor and copy tapes, you can even record from one input while listening to a different one.

The pre-amp output can be used to drive a separate power amplifier. You can upgrade at any time in the future simply by adding the Audiolab 8000P Power amplifier.
