DATA
SHEET

Production: Current
Hire stock: No
New stock: No
Used stock: No
 Go Back one page

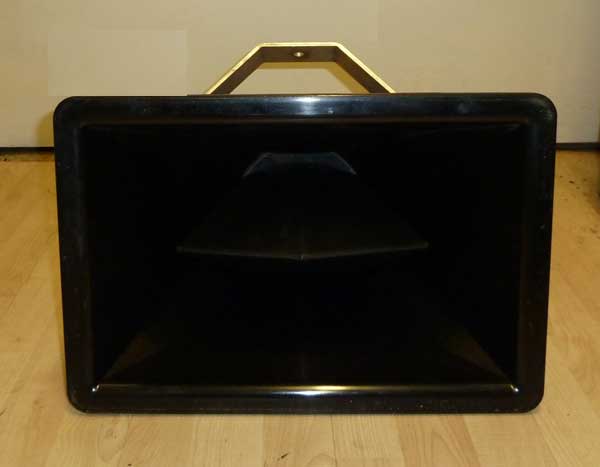

Funktion One installation loudspeaker

Features:

  • Wide bandwidth with low distortion
  • Compact and light weight
  • Funktion One designed 8” loudspeaker
  • Includes stainless steel mounting yoke


Specifications:

Frequency Response ± 3dB: 250Hz - 8kHz
Sensitivity  (1W at 1m) 106dB
Power  (rms) AES 130W
Nominal Impedance 12Ω
Nominal Dispersion: 50° Horizontal x 25° Vertical
Connectors: Glanded captive lead
Driver 8"
Operating  Band 250Hz - up
Weight: 10.5kg (23lbs)


Overview:

The R2S8 has been specifically developed for high quality speech reinforcement applications.  It uses Funktion-One’s advanced cone mid-range technology to produce clear and intelligible sound throughout the vocal band without the harshness usually associated with speech loudspeakers.  The efficient wide-bandwidth 8” driver operates from 250Hz to 8kHz without the need for a separate compression driver.  No corrective equalisation is required and the resulting sound feels perceptibly close to the listener so that messages and announcements sound natural rather than aggressive.

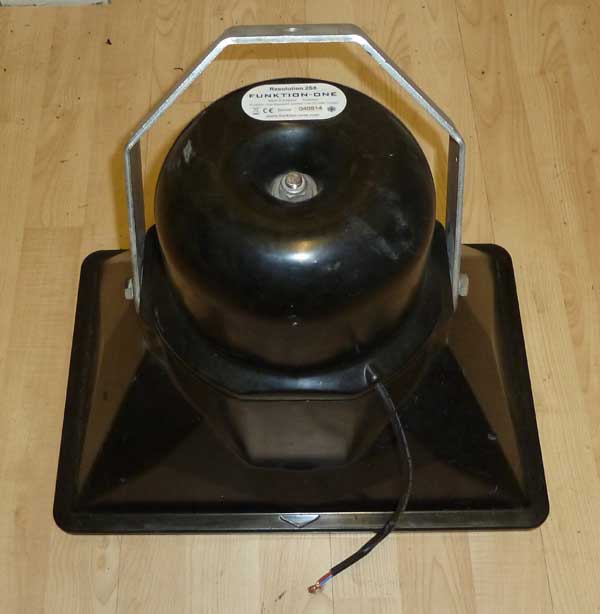

This R2S8 loudspeaker is highly durable and weather resistant and is supplied complete with a stainless steel yoke bracket.

 More info from Funktion One
