DATA
SHEET

Production: Obsolete
Hire stock: No
New stock: No
Used stock: Yes
 Go Back one page
dbx two channel Graphic Equalizer

Features

  • Two 31-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of 6 or 12 dB
  • 12dB per octave 50Hz low-cut filter
  • Front panel bypass switch
  • 12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • Internal Toroidal Transformer

Specifications

  • XLR (pin 2 hot) and " TRS Inputs and Outputs
  • Electronically balanced inputs, RF filtered
  • Input impedance: 40kOhm (Bal), 20kOhm (unbal)
  • Max input: >+21dBu
  • Output impedance: 100Ohm (bal), 50Ohm (unbal)
  • Bandwidth: 20Hz - 20kHz +0.5/-1dB
  • Frequency Response: <10Hz to >50kHz +0.5/-3dB
  • Dynamic range: >108dB
  • Signal to noise ratio: 90dB
  • THD+Noise: 0.004%
  • Inter-channel crosstalk: -80dB, 20Hz - 20kHz
  • Mains power requirements: 220-240VAC 50/60Hz IEC
  • Power consumption: 15W
dbx 231 stereo graphic equaliser

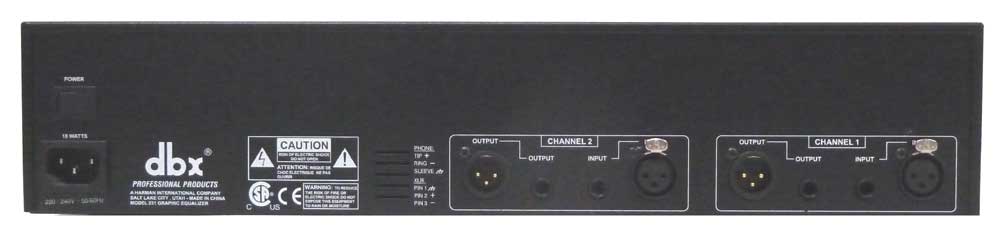

dbx 231 stereo graphic equaliser

With a lineage extending back to the revered 12 and 20 Series graphic equalizers, the dbx 231 easily lives up to the dbx reputation at a price point which can find a home in the tightest of budgets. Besides including two 31-band channels of 1/3-octave equalization, the 231 also offers 6 or 12 dB boost/cut range; XLR, 20mm faders and 1/4" inputs; nonconductive nylon sliders; and an intuitive user interface with comprehensive output and gain reduction metering. As always, the inevitable result of our meticulous attention to detail and top-quality componentry is exceptional sound, performance, and reliability.

The 2-Series represents a major step forward in the performance of entry-level graphic equalizers. From its amazing 10Hz to 50kHz frequency response, to its 108dB dynamic range and internal toroidal transformer, the 2-Series offers out of this world specifications with a down to earth price point. Sure to find a home in the studio, on tour and with installed sound venues, the 2-Series is destined to take its rightful place in the lineage of great dbx signal processors that are the Professional's Choice. With such affordable quality, there's no longer any excuse for compromising your sound.

Manufacturer's data sheet, user manual & support
